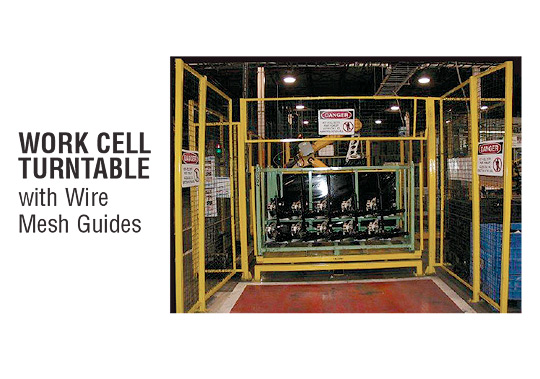

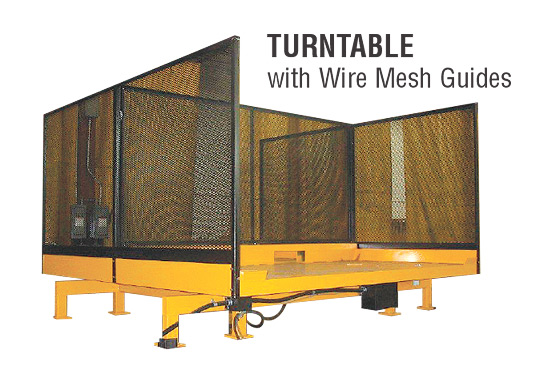

Options and Special Applications
PRODUCT INFO
The Power Turntable is designed for positioning jobs where heavy duty loads must be rotated on a regular basis and are available in low profile and high profile configurations.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Custom sizes
- Custom capacities
TECHNICAL SPECIFICATIONS
CAPACITY:
2,000/4,000/6,000 lbs
BEARINGS:
Tapered roller bearing type
ROTATION:
360˚
POWERED OPTIONS:
AC 110/1/60 or 460/575/3/60 (connector plug not included)
STANDARD:
– Smooth steel rectangular or circular tops
– All models have center slew ring with support bearings
– NEMA 12 prewired controls – forward/reverse. Push button control with 8′ cable
– 1/2 to 3/4HP geared brake motor on powered models
Power Turntables
| PTT MODEL NO. | CAPACITY (Lbs.) | PLATFORM SIZE (W1 x L1) (In.) | OVERSIZED PLATFORM (Up to) (In.) | LOW'D HEIGHT (In.) | SHIP WEIGHT (Lbs.) |
|---|---|---|---|---|---|
| PTT36-20 | 2000 | 36" Dia. or Square | 48" Dia. or Square | 12 | 350 |
| PTT36-40 | 4000 | 36" Dia. or Square | 48" Dia. or Square | 12 | 400 |
| PTT36-60 | 6000 | 36" Dia. or Square | 48" Dia. or Square | 12 | 450 |
