Spring Tables

Options and Special Applications

PRODUCT INFO

The Spring Table requires no power, and is designed to lowering the height of the platform when weight is added. As weight is removed, the springs expand, raising the height of the platform. Once properly calibrated for the maximum load weight, the lift will automatically stay at an ergonomic height.

  • Makes parts easily reachable
  • Prevents back strain
  • Increases productivity.

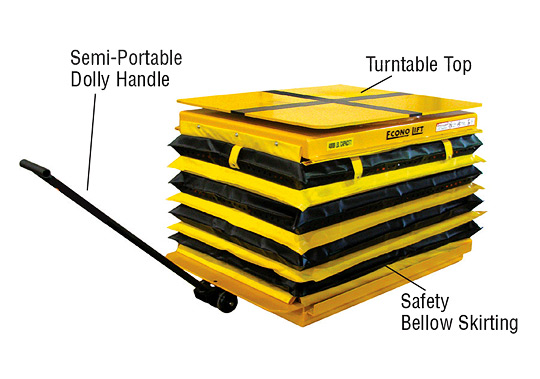

OPTIONS & Resources

  • Oversized platforms
  • Corner gussets
  • Rotating tops – spring and manual detents
  • Bellow safety skirting
  • Semi-portable
  • Portable
  • Motion stabilizer
  • Fork pockets

TECHNICAL SPECIFICATIONS

CAPACITY:

400 – 4,500 lbs

PLATFORM SIZES:

32″ wide x 48″ long to 54″ wide x 54″ long

BASE SIZES:

Standard 32″ wide x 48″ long

TRAVEL:

20″ vertical travel

LOWERED HEIGHT:

10″

SAFETY:

Captured rollers

MAINTENANCE:

Hinged table top provides easy access to springs
Self lubricated bronze bushings on all wear points

POWER SUPPLY:

Spring powered

Spring Tables

SPT
MODEL NO.
CAPACITY
(Lbs.)
STD. PLATFORM BASE
(W x L) (In.)
OVERSIZED PLAT.
(Up to) (In.)
LOW HEIGHT
(In.)
TRAVEL
(In.)
RAISED HEIGHT
(In.)
# OF SPRINGSSHIP WEIGHT
(Lbs)
32" Wide x 48" Long
Platform/Base
SPT45400 - 450032 x 4854 x 541020302650
