Options and Special Applications
TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000/6,000 lbs
PLATFORM SIZES:
32″ wide x 48″ long to 72″ wide x 72″ long
BASE SIZES:
Standard 32″ and 48″ wide x 48″ long
TRAVEL:
24″ vertical travel
LOWERED HEIGHT:
9″
SAFETY:
Flip over maintenance stop
Captured rollers
POWER SUPPLY:

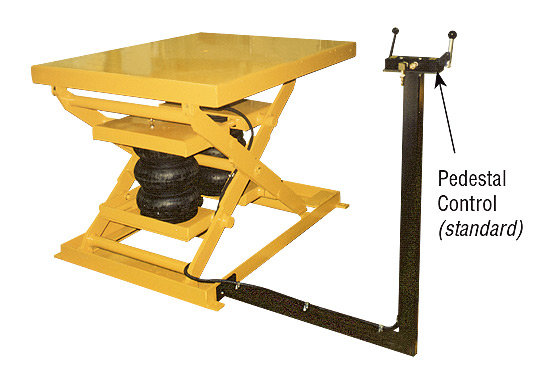

Pedestal mounted hand control (up/down valve)

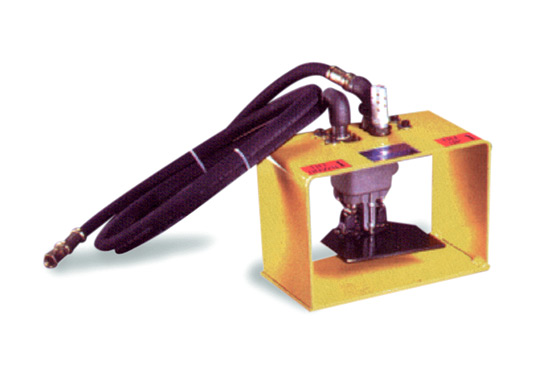

Covered Foot Control (optional)
MAINTENANCE:
Hinged table top provides easy access to air bag
Self lubricated bronze bushings on all wear points
PRODUCT INFO
The Air Bag Lift Table is designed to operate smoothly, based on bellows type bags which contain a column of compressed air that provides the lifting force needed to lift the table. No electrical power is needed to operate.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.

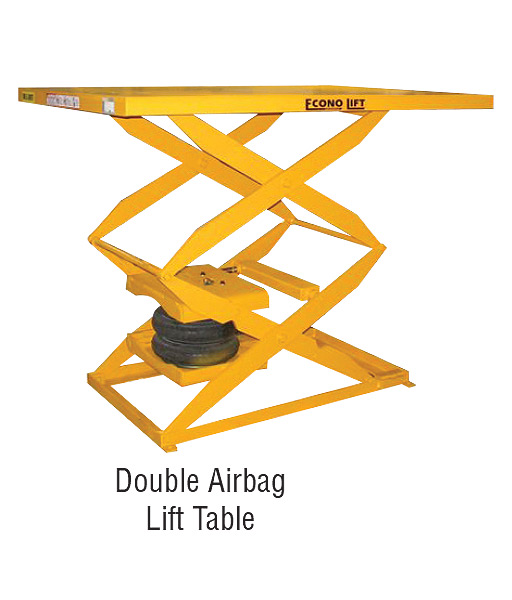

OPTIONS & Resources

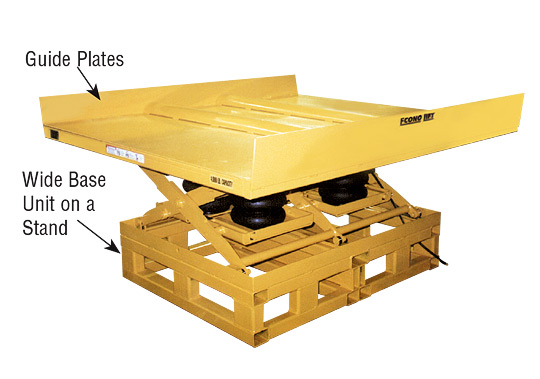

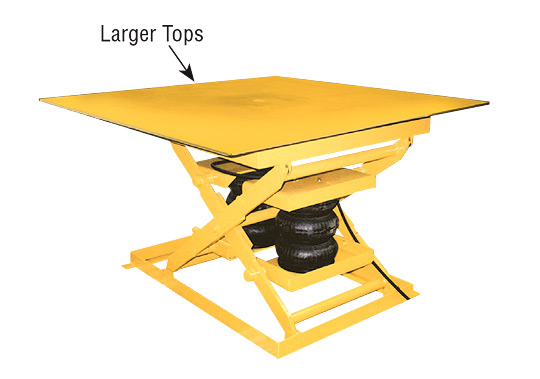

- Oversized platforms
- Corner gussets
- Beveled edges for pit mounting
- Eye-bolts for pit mounting
- Rotating tops
– spring detents
– manual detents - Roller conveyor, Ball transfer tops

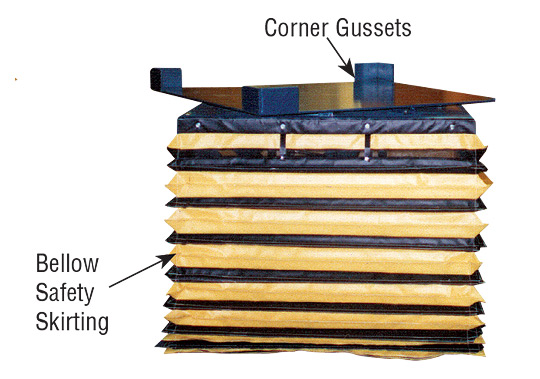

- Bellow safety skirting
- Semi-portable
- Portable
- Motion stabilizer
- Fork pockets
- Safety lock-out valves
- Ross air valves

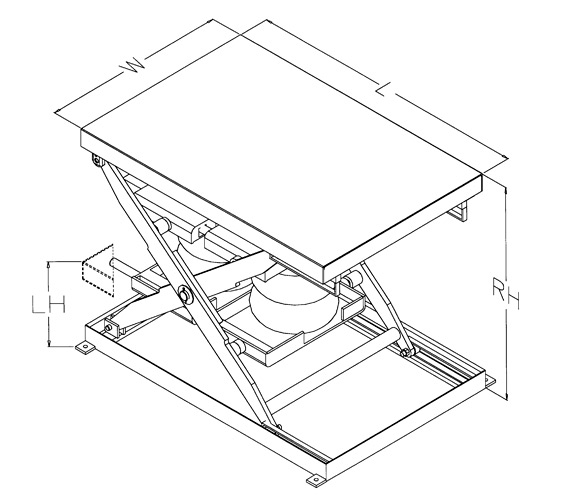

Side View
Air Bag Lift Tables
| ABSL MODEL NO. | CAPACITY (Lbs.) | STD. PLATFORM BASE (W x D) (In.) | OVERSIZE PLATFORM (Up to) (In.) | LOW'D HEIGHT (LH) (In.) | TRAVEL (In.) | RAISED HEIGHT (RH) (In.) | # OF AIRBAGS | SHIP WEIGHT (Lbs.) |
|---|---|---|---|---|---|---|---|---|
| 32" Wide x 48" Long Platform/Base | ||||||||
| ABSL 10-3248 | 1000 | 32 x 48 | 56 x 72 | 9 | 24 | 33 | 1 | 650 |
| ABSL 20-3248 | 2000 | 32 x 48 | 56 x 72 | 9 | 24 | 33 | 1 | 685 |
| ABSL 40-3248 | 4000 | 32 x 48 | 56 x 72 | 9 | 24 | 33 | 2 | 725 |
| 48" Wide x 48" Long Platform/Base | ||||||||
| ABSL 10-4848 | 1000 | 48 x 48 | 72 x 72 | 9 | 24 | 33 | 1 | 720 |
| ABSL 20-4848 | 2000 | 48 x 48 | 72 x 72 | 9 | 24 | 33 | 1 | 745 |
| ABSL 40-4848 | 4000 | 48 x 48 | 72 x 72 | 9 | 24 | 33 | 2 | 870 |
| ABSL 60-4848 | 6000 | 48 x 48 | 72 x 72 | 9 | 24 | 33 | 4 | 925 |
