LIFT TABLES

Lift Tables

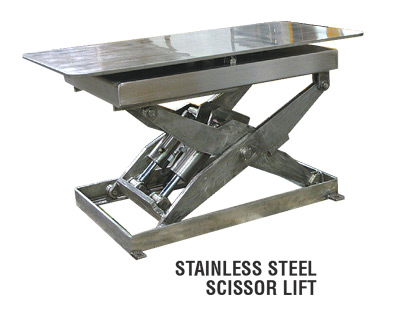

Options and Special Applications

PRODUCT INFO

Econo Lift’s line of lift tables are designed to raise and lower large, heavy loads through relatively small distances. A recommended way to help reduce incidents of musculoskeletal disorders by correctly re-positioning work at a suitable height for operators. Lift tables lend themselves to being easily adapted for a specific use including pallet handling, vehicle loading and work positioning.

  • Makes parts easily reachable
  • Prevents back strain
  • Increases productivity.

OPTIONS & Resources

  • Oversized platforms
  • Beveled edges for pit mounting
  • Eye-bolts for pit mounting
  • Rotating tops – spring detents, manual detents
  • Roller conveyor, Ball transfer tops
  • Bellow safety skirting
  • Safety tape switch
  • Safety touch bars
  • Semi-portable
  • Portable
  • Tandem lifts
  • Double scissor lifts

TECHNICAL SPECIFICATIONS

CAPACITY:

2,000/3,000/4,000/5,000/6,000 lbs

PLATFORM SIZES:

24″ wide x 36″ long to
72″ wide x 96″ long

BASE SIZES:

Standard 24″, 36″ 48″ wide x
36″, 48″, 60″ 96″ long

TRAVEL:

24″, 36″, 42″, 48″ vertical travel

LOWERED HEIGHT:

9″ (special heights available)

SAFETY:

Velocity fuse is standard on each cylinder
Heavy duty hydraulic cylinders – chrome plated rod with polyurethane seals

POWER SUPPLIES:

A/C 110/1/60 volt (standard) – Hand or foot operated
A/C 460/575/3/60 volt (opt.) – Hand or foot operated

Air/Hydraulic – Foot operated (standard), hand operated (optional)
Internally mounted
Easily accessible for maintenance or repair
Motors – Single phase 1 h.p. and three phase 1-1/2 h.p.
– hand or foot operated standard

MAINTENANCE:

Hinged table top provides easy access to power unit and cylinders
Self lubricated bushings on all pivot points

Standard 24" Wide Base Lift Tables

SL
MODEL NO.
CAPACITY
(Lbs.)
STD. PLATFORM BASE
(W x L) (In.)
OVERSIZED PLAT.
(Up to) (In.)
LOW HEIGHT
(In.)
RAISED HEIGHT
(In.)
UP SPEED
(Sec.)
MOTOR
(H.P.)
VOLT/HP/HZSHIP WEIGHT
(Lbs)
24" Travel - 24" Wide x 36" Long
Platform/Base
SL24-20200024 x 3648 x 60933151115/1/60450
SL24-40400024 x 3648 x 60933211115/1/60470
SL24-60600024 x 3648 x 60933321115/1/60520
36" Travel - 24" Wide x 48" Long
Platform/Base
SL36-20200024 x 4848 x 72945201115/1/60600
SL36-30300024 x 4848 x 72945301115/1/60620
SL36-40400024 x 4848 x 72945371115/1/60650
SL36-50500024 x 4848 x 72945401208, 220, 460,575/3/60680
SL36-60600024 x 4848 x 72945481208, 220, 460,575/3/60700
42" Travel - 24" Wide x 60" Long
Platform/Base
SL42-20200024 x 6048 x 84951251115/1/60625
SL42-40400024 x 6048 x 84951471115/1/60800
SL42-60600024 x 6048 x 84951501208, 220, 460,575/3/60950
48" Travel - 24" Wide x 72" Long
Platform/Base
SL48-20200024 x 7248 x 96957321115/1/60800
SL48-40400024 x 7248 x 96957501115/1/60950
SL48-60600024 x 7248 x 96957561208, 220, 460,575/3/601200



36" Wide Base Lift Tables

3SL
MODEL NO.
CAPACITY
(Lbs.)
STD. PLATFORM BASE
(W x L) (In.)
OVERSIZED PLAT.
(Up to) (In.)
LOW HEIGHT
(In.)
RAISED HEIGHT
(In.)
UP SPEED
(Sec.)
MOTOR
(H.P.)
VOLT/HP/HZSHIP WEIGHT
(Lbs)
24" Travel - 36" Wide x 36" Long
Platform/Base
3SL24-20200036 x 3660 x 60933151115/1/60480
3SL24-40400036 x 3660 x 60933211115/1/60520
3SL24-60600036 x 3660 x 60933321115/1/60550
36" Travel - 36" Wide x 48" Long
Platform/Base
3SL36-20200036 x 4860 x 72945201115/1/60750
3SL36-40400036 x 4860 x 72945381115/1/60790
3SL36-60600036 x 4860 x 72945481208, 220, 460,575/3/60850
42" Travel - 36" Wide x 60" Long
Platform/Base
3SL42-20200036 x 6060 x 84951251115/1/60830
3SL42-40400036 x 6060 x 84951471115/1/60890
3SL42-60600036 x 6060 x 84951501208, 220, 460,575/3/60950
48" Travel - 36" Wide x 72" Long
Platform/Base
3SL48-20200036 x 7260 x 96957321115/1/601100
3SL48-40400036 x 7260 x 96957501115/1/601200
3SL48-60600036 x 7260 x 96957561208, 220, 460,575/3/601280



48" Wide Base Lift Tables

4SL
MODEL NO.
CAPACITY
(Lbs.)
STD. PLATFORM BASE
(W x L) (in.)
OVERSIZED PLAT.
(Up to) (In.)
LOW HEIGHT
(In.)
RAISED HEIGHT
(In.)
UP SPEED
(Sec.)
MOTOR
(H.P.)
VOLT/HP/HZSHIP WEIGHT
(Lbs)
24" Travel - 48" Wide x 36" Long
Platform/Base
4SL24-20200048 x 3672 x 60933151115/1/60700
4SL24-40400048 x 3672 x 60933241115/1/60740
4SL24-60600048 x 3672 x 60933341115/1/60780
36" Travel - 48" Wide x 48" Long
Platform/Base
4SL36-20200048 x 4872 x 72945201115/1/60840
4SL36-40400048 x 4872 x 72945381115/1/60890
4SL36-60600048 x 4872 x 72945481208, 220, 460, 575/3/60950
42" Travel - 48" Wide x 60" Long
Platform/Base
4SL42-20200048 x 6072 x 84951261115/1/60890
4SL42-40400048 x 6072 x 84951421115/1/60950
4SL42-60600048 x 6072 x 84951501208, 220, 460, 575/3/601000
48" Travel - 48" Wide x 72" Long
Platform/Base
4SL48-20200048 x 7272 x 96957321115/1/60890
4SL48-40400048 x 7272 x 96957501115/1/601100
4SL48-60600048 x 7272 x 96957561208, 220, 460, 575/3/601200
