The Double Scissor Lift Table is designed to provide approximately double the vertical lift of a single scissor lift table with the equivalent length frame. These units achieve maximum travel while maintaining a small footprint.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.

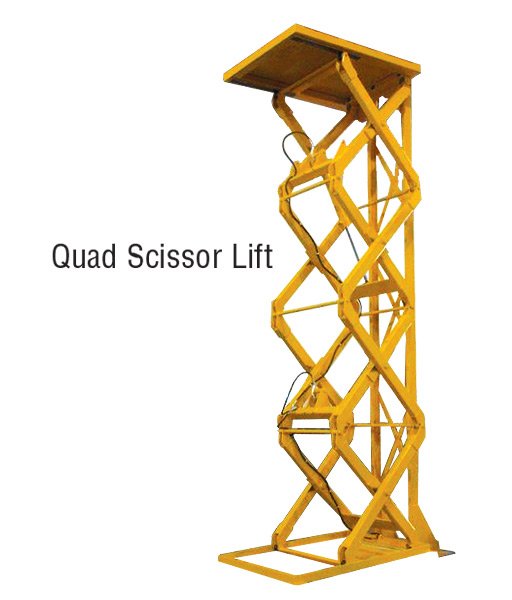

OPTIONS & Resources
- Oversized platforms
- Beveled edges for pit mounting
- Eye-bolts for pit mounting

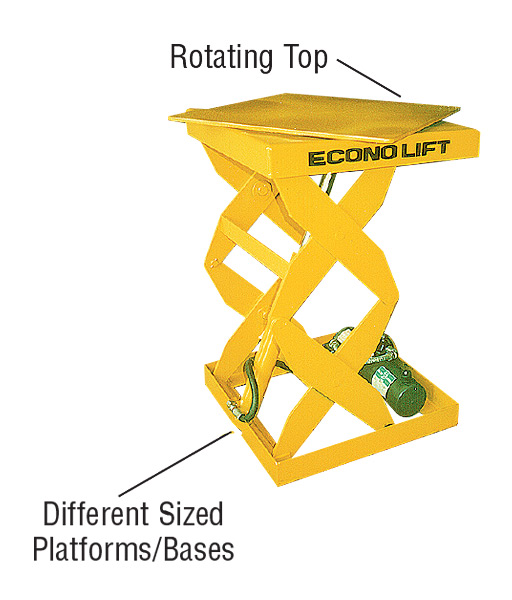

- Rotating tops (available)
– spring detents
– manual detents - Roller conveyor, ball transfer tops

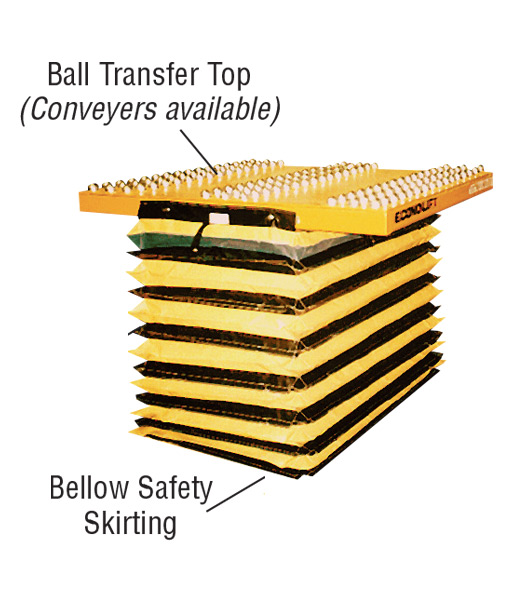

- Bellow safety skirting
- Safety tape switch
- Semi-portable
- Portable
Side View
TECHNICAL SPECIFICATIONS
CAPACITY:
500/1,000/1,500/2,000/3,000/4,000/5,000/6,000 lbs
PLATFORM SIZES:
24″ wide x 36″ long to
72″ wide x 72″ long
BASE SIZES:
Standard 24″, 36″, 48″ wide x 36″, 48″ long
TRAVEL:
48″, 72″ vertical travel
LOWERED HEIGHT:
12″ & 18″
SAFETY:
Velocity fuse is standard on each cylinder
Heavy duty hydraulic cylinders – chrome plated rod with polyurethane seals
POWER SUPPLIES:
A/C 110/1/60 volt (standard) – Hand or foot operated
A/C 460/575/3/60 volt (optional) – Hand or foot operated
Air/Hydraulic – Foot operated, hand operated available
– Internally mounted
– Easily accessible for maintenance or repair
– Motor: Single phase 1 h.p. and three phase 1-1/2 h.p. hand or foot operated standard
MAINTENANCE:
Hinged table top provides easy access to power unit and cylinders
Self lubricated bronze bushings on all wear points
Light Duty Double Scissor Lift Tables
LDSL MODEL NO. | CAPACITY (Lbs.) | STD. PLATFORM BASE (W x L) (In.) | OVERSIZED PLAT. (Up to) (In.) | LOW HEIGHT (+/- 1/2”) (LH) (In.) | RAISED HEIGHT (TH) (In.) | UP SPEED (Sec.) | MOTOR (H.P.) | VOLT/HP/HZ | SHIP WEIGHT (Lbs) |
---|---|---|---|---|---|---|---|---|---|
LDSL30-5-12 | 500 | 12 x 24 | 12 x 24 | 6 | 36 | 20 | 1/2 | 115/1/60 | 185 |
LDSL30-5-16 | 500 | 16 x 24 | 24 x 36 | 6 | 36 | 20 | 1/2 | 115/1/60 | 210 |
LDSL30-10 | 1000 | 16 x 24 | 24 x 36 | 6 | 36 | 20 | 1/2 | 115/1/60 | 210 |
LDSL36-15 | 1500 | 16 x 36 | 30 x 48 | 6 | 42 | 25 | 3/4 | 115/1/60 | 220 |
Standard 24" Wide Base Double Scissor Lift Tables
DSL MODEL NO. | CAPACITY (Lbs.) | STD. PLATFORM BASE (W x L) (In.) | OVERSIZED PLAT. (Up to) (In.) | LOW HEIGHT (LH) (In.) | RAISED HEIGHT (TH) (In.) | UP SPEED (Sec.) | MOTOR (H.P.) | VOLT/HP/HZ | SHIP WEIGHT (Lbs) |
---|---|---|---|---|---|---|---|---|---|
48" Travel - 24" Wide x 36" Long Platform/Base | |||||||||
DSL48-10 | 1000 | 24 x 36 | 48 x 60 | 12 | 60 | 18 | 1 | 115/1/60 | 625 |
DSL48-15 | 1500 | 24 x 36 | 48 x 60 | 12 | 60 | 20 | 1 | 115/1/60 | 650 |
DSL48-20 | 2000 | 24 x 36 | 48 x 60 | 12 | 60 | 30 | 1 | 115/1/60 | 675 |
DSL48-30 | 3000 | 24 x 36 | 48 x 60 | 16 | 64 | 40 | 1 | 115/1/60 | 695 |
DSL48-40 | 4000 | 24 x 36 | 48 x 60 | 16 | 64 | 55 | 1 | 115/1/60 | 725 |
DSL48-50 | 5000 | 24 x 36 | 48 x 60 | 16 | 64 | 40 | 1 | 208, 220, 460, 575/3/60 | 750 |
DSL48-60 | 6000 | 24 x 36 | 48 x 60 | 16 | 64 | 55 | 1 | 208, 220, 460, 575/3/60 | 780 |
72" Travel - 24" Wide x 48" Long Platform/Base | |||||||||
DSL72-10 | 1000 | 24 x 48 | 48 x 72 | 12 | 84 | 20 | 1 | 115/1/60 | 850 |
DSL72-15 | 1500 | 24 x 48 | 48 x 72 | 12 | 84 | 22 | 1 | 115/1/60 | 875 |
DSL72-20 | 2000 | 24 x 48 | 48 x 72 | 12 | 84 | 32 | 1 | 115/1/60 | 900 |
DSL72-30 | 3000 | 24 x 48 | 48 x 72 | 16 | 88 | 44 | 1 | 115/1/60 | 930 |
DSL72-40 | 4000 | 24 x 48 | 48 x 72 | 16 | 88 | 60 | 1 | 115/1/60 | 975 |
DSL72-50 | 5000 | 24 x 48 | 48 x 72 | 16 | 88 | 49 | 1 | 208, 220, 460, 575/3/60 | 1000 |
DSL72-60 | 6000 | 24 x 48 | 48 x 72 | 16 | 88 | 57 | 1 | 208, 220, 460, 575/3/60 | 1050 |
36" Wide Base Double Scissor Lift Tables
3DSL MODEL NO. | CAPACITY (Lbs.) | STD. PLATFORM BASE (W x L) (In.) | OVERSIZED PLAT. (Up to) (In.) | LOW HEIGHT (LH) (In.) | RAISED HEIGHT (TH) (In.) | UP SPEED (Sec.) | MOTOR (H.P.) | VOLT/HP/HZ | SHIP WEIGHT (Lbs) |
---|---|---|---|---|---|---|---|---|---|
48" Travel - 36" Wide x 36" Long Platform/Base | |||||||||
3DSL48-10 | 1000 | 36 x 36 | 60 x 60 | 12 | 60 | 18 | 1 | 115/1/60 | 650 |
3DSL48-15 | 1500 | 36 x 36 | 60 x 60 | 12 | 60 | 20 | 1 | 115/1/60 | 675 |
3DSL48-20 | 2000 | 36 x 36 | 60 x 60 | 12 | 60 | 30 | 1 | 115/1/60 | 700 |
3DSL48-30 | 3000 | 36 x 36 | 60 x 60 | 16 | 64 | 40 | 1 | 115/1/60 | 725 |
3DSL48-40 | 4000 | 36 x 36 | 60 x 60 | 16 | 64 | 55 | 1 | 115/1/60 | 750 |
3DSL48-50 | 5000 | 36 x 36 | 60 x 60 | 16 | 64 | 40 | 1 | 208, 220, 460, 575/3/60 | 775 |
3DSL48-60 | 6000 | 36 x 36 | 60 x 60 | 16 | 64 | 55 | 1 | 208, 220, 460, 575/3/60 | 800 |
72" Travel - 36" Wide x 48" Long Platform/Base | |||||||||
3DSL72-10 | 1000 | 36 x 48 | 60 x 72 | 12 | 84 | 20 | 1 | 115/1/60 | 875 |
3DSL72-15 | 1500 | 36 x 48 | 60 x 72 | 12 | 84 | 22 | 1 | 115/1/60 | 900 |
3DSL72-20 | 2000 | 36 x 48 | 60 x 72 | 12 | 84 | 32 | 1 | 115/1/60 | 925 |
3DSL72-30 | 3000 | 36 x 48 | 60 x 72 | 16 | 88 | 44 | 1 | 115/1/60 | 950 |
3DSL72-40 | 4000 | 36 x 48 | 60 x 72 | 16 | 88 | 60 | 1 | 115/1/60 | 995 |
3DSL72-50 | 5000 | 36 x 48 | 60 x 72 | 16 | 88 | 49 | 1 | 208, 220, 460, 575/3/60 | 1050 |
3DSL72-60 | 6000 | 36 x 48 | 60 x 72 | 16 | 88 | 57 | 1 | 208, 220, 460, 575/3/60 | 1095 |
48" Wide Base Double Scissor Lift Tables
4DSL MODEL NO. | CAPACITY (Lbs.) | STD. PLATFORM BASE (W x L) (In.) | OVERSIZED PLAT. (Up to) (In.) | LOW HEIGHT (LH) (In.) | RAISED HEIGHT (TH) (In.) | UP SPEED (Sec.) | MOTOR (H.P.) | VOLT/HP/HZ | SHIP WEIGHT (Lbs) |
---|---|---|---|---|---|---|---|---|---|
48" Travel - 48" Wide x 36" Long Platform/Base | |||||||||
4DSL48-10 | 1000 | 48 x 36 | 72 x 60 | 12 | 60 | 18 | 1 | 115/1/60 | 875 |
4DSL48-15 | 1500 | 48 x 36 | 72 x 60 | 12 | 60 | 20 | 1 | 115/1/60 | 900 |
4DSL48-20 | 2000 | 48 x 36 | 72 x 60 | 12 | 60 | 30 | 1 | 115/1/60 | 925 |
4DSL48-30 | 3000 | 48 x 36 | 72 x 60 | 16 | 64 | 40 | 1 | 115/1/60 | 950 |
4DSL48-40 | 4000 | 48 x 36 | 72 x 60 | 16 | 64 | 55 | 1 | 115/1/60 | 995 |
4DSL48-50 | 5000 | 48 x 36 | 72 x 60 | 16 | 64 | 40 | 1 | 208, 220, 460, 575/3/60 | 1050 |
4DSL48-60 | 6000 | 48 x 36 | 72 x 60 | 16 | 64 | 55 | 1 | 208, 220, 460, 575/3/60 | 1095 |
72" Travel - 48" Wide x 48" Long Platform/Base | |||||||||
4DSL72-10 | 1000 | 48 x 48 | 72 x 72 | 12 | 84 | 20 | 1 | 115/1/60 | 1050 |
4DSL72-15 | 1500 | 48 x 48 | 72 x 72 | 12 | 84 | 22 | 1 | 115/1/60 | 1100 |
4DSL72-20 | 2000 | 48 x 48 | 72 x 72 | 12 | 84 | 32 | 1 | 115/1/60 | 1195 |
4DSL72-30 | 3000 | 48 x 48 | 72 x 72 | 16 | 88 | 44 | 1 | 115/1/60 | 1295 |
4DSL72-40 | 4000 | 48 x 48 | 72 x 72 | 16 | 88 | 60 | 1 | 115/1/60 | 1400 |
4DSL72-50 | 5000 | 48 x 48 | 72 x 72 | 16 | 88 | 49 | 1 | 208, 220, 460, 575/3/60 | 1450 |
4DSL72-60 | 6000 | 48 x 48 | 72 x 72 | 16 | 88 | 57 | 1 | 208, 220, 460, 575/3/60 | 1495 |
