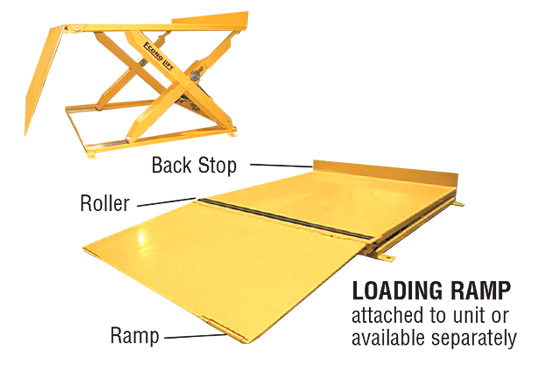

Options and Special Applications
PRODUCT INFO
The Low Profile Scissor Lift is designed to provide improved ergonomics and worker productivity when used for work positioning, conveyor systems, parts assembly and disassembly, and cart positioning.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Oversized platforms
- Rotating tops
- Electric toe guards
- Safety tape switch
- Conveyors
- Bellow skirting
TECHNICAL SPECIFICATIONS
CAPACITY:
500/1,000/2,000/4,000 lbs
PLATFORM SIZES:
24″ wide x 48″ long to 72″ wide x 72″ long
BASE SIZES:
24″ wide x 48″ long and 48″ wide x 48″ long
LOWERED HEIGHT:
4.3″
TRAVEL:
29″
SAFETY:
Velocity fuses
Pressure compensated flow divider
POWER SUPPLIES:
External A/C 110 power (standard)
Hand or covered foot control
MAINTENANCE:
Hinged top for easy access
Self lubricated bushings on all pivot points
Standard Wide Base Low Profile Scissor Lift Tables
LP MODEL NO. | CAPACITY (Lbs.) | STD. PLATFORM BASE (W x L) (In.) | OVERSIZED PLAT. (Up to) (In.) | LOW'D HEIGHT (In.) | VERTICAL TRAVEL (In.) | TOTAL HEIGHT (In.) | MOTOR (H.P.) | VOLT/HP/HZ | SHIP WEIGHT (Lbs) |
---|---|---|---|---|---|---|---|---|---|
24" Wide x 48" Long Standard Platform | |||||||||
LP29-5 | 500 | 24 x 48 | 48 x 72 | 4.3 | 29 | 33.3 | 1 | 110/1/60 | 325 |
LP29-10 | 1000 | 24 x 48 | 48 x 72 | 4.3 | 29 | 33.3 | 1 | 110/1/60 | 350 |
LP29-20 | 2000 | 24 x 48 | 48 x 72 | 4.3 | 29 | 33.3 | 1 | 110/1/60 | 550 |
LP29-40 | 4000 | 24 x 48 | 48 x 72 | 4.3 | 29 | 33.3 | 1 | 110/1/60 | 650 |
48" Wide x 48" Long Standard Platform | |||||||||
4LP29-5 | 500 | 48 x 48 | 72 x 72 | 4.3 | 29 | 33.3 | 1 | 110/1/60 | 350 |
4LP29-10 | 1000 | 48 x 48 | 72 x 72 | 4.3 | 29 | 33.3 | 1 | 110/1/60 | 375 |
4LP29-20 | 2000 | 48 x 48 | 72 x 72 | 4.3 | 29 | 33.3 | 1 | 110/1/60 | 575 |
4LP29-40 | 4000 | 48 x 48 | 72 x 72 | 4.3 | 29 | 33.3 | 1 | 110/1/60 | 700 |
