Options and Special Applications
PRODUCT INFO
The Air Bag Tilt Table is designed to operate smoothly, based on bellows type bags which contain a column of compressed air that provides the lifting force needed to tilt the table. No electrical power is needed to operate.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources

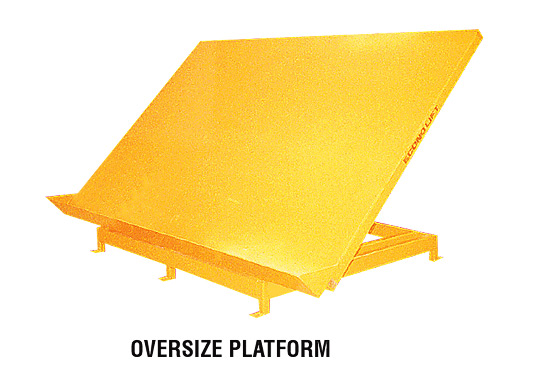

- Platforms larger or smaller
- Tilt Angle: restricted
- Mounted on carousel
- Ross air valves
TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000/6,000 lbs
TILT ANGLE:
0 – 40˚
FRONT RETAINING LIP:
8″ high (standard)
SAFETY:
Restraining chain
Maintenance bar

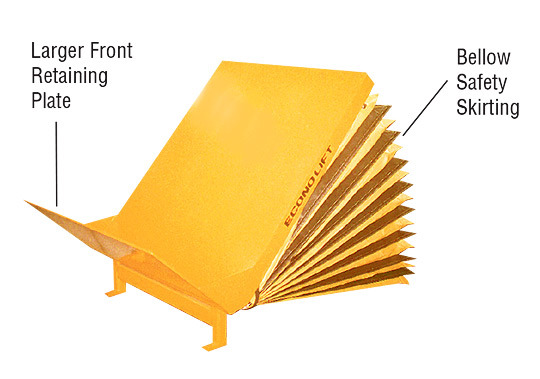

Bellow safety skirting
Retaining lip – larger or smaller
Conveyor or ball transfer tops
LOWERED HEIGHT:
9″
POWER SUPPLY:
Pedestal mounted hand control (up/down valve)

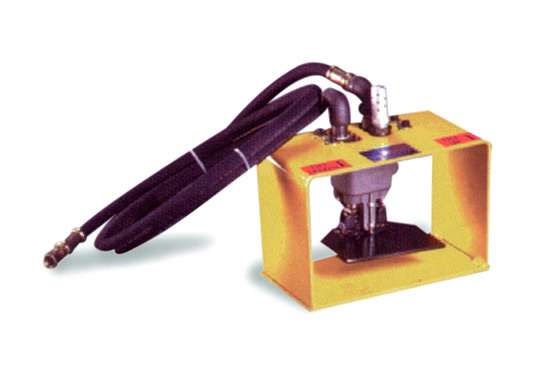

Covered Foot Control (optional)

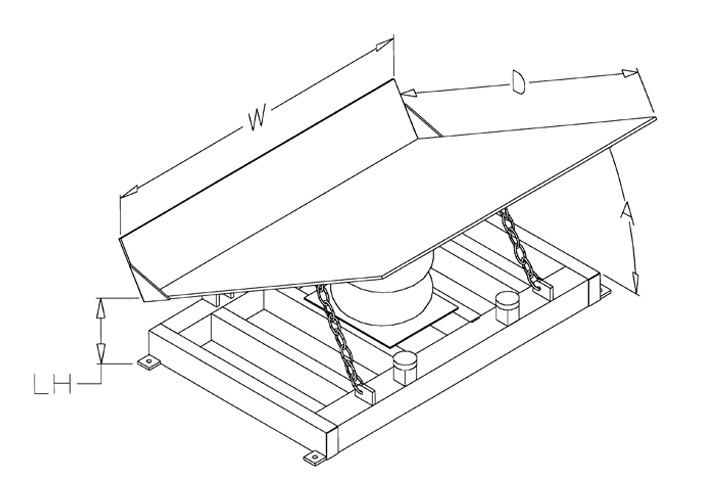

Side View
Air Bag Tilt Tables
| ABTRT MODEL NO. | CAPACITY (Lbs.) | PLATFORM SIZE (Width x Depth) (In.) | MAX. PLATFORM SIZE (Width x Depth) (In.) | LOW'D HEIGHT (LH) (In.) | TILT ANGLE (A) (Degrees) | SHIP WEIGHT (Lbs.) |
|---|---|---|---|---|---|---|
| 36" Wide | ||||||
| ABTRT-1-3636 | 1000 | 36 x 36 | 48 x 48 | 9 | 30 | 250 |
| ABTRT-2-3636 | 2000 | 36 x 36 | 48 x 48 | 9 | 30 | 380 |
| ABTRT-4-3636 | 4000 | 36 x 36 | 48 x 48 | 9 | 30 | 410 |
| ABTRT-6-3636 | 6000 | 36 x 36 | 48 x 48 | 9 | 30 | 430 |
| 50" Wide | ||||||
| ABTRT-1-5050 | 1000 | 50 x 50 | 72 x 72 | 9 | 30 | 320 |
| ABTRT-2-5050 | 2000 | 50 x 50 | 72 x 72 | 9 | 30 | 450 |
| ABTRT-4-5050 | 4000 | 50 x 50 | 72 x 72 | 9 | 30 | 490 |
| ABTRT-6-5050 | 6000 | 50 x 50 | 72 x 72 | 9 | 30 | 580 |
