TECHNICAL SPECIFICATIONS
CAPACITY:
450 – 4,500 lbs
PLATFORM SIZES:
32” wide x 48” long to 56” wide x 72” long
BASE SIZE:
32” wide x 48” long
TRAVEL:
24″
LOWERED HEIGHT:
9″
SAFETY:
Restraining Chain
Maintenance Bar
MAINTENANCE:
Hinged table top provides easy access to air bag
Self lubricated bronze bushings on all wear points
POWER SUPPLY:
Air
PRODUCT INFO
The Air Bag Ergo Self Leveller is designed using a bellow type bag which contains a column of compressed air that provides the lifting force. No electrical power is needed to operate. Load and unload pallets without stooping, stretching, or walking. Maintains materials at a constant level and comfortable working height as layers of boxes are added or removed.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Oversized platforms
- Beveled edges for pit mounting
- Eye-bolts for pit mounting
- Rotating tops
– spring detents
– manual detents - Roller conveyor, Ball transfer tops
- Bellow safety skirting
- Semi-portable
- Portable
Total Height Available
| WEIGHT (LBS) | TOTAL HEIGHT | TOTAL HEIGHT | TOTAL HEIGHT |
|---|---|---|---|
| at 100 P.S.I. | at 80 P.S.I. | at 60 P.S.I. | |
| 0 | 33 | 33 | 33 |
| 250 | 30 | 28.5 | 27 |
| 500 | 28.25 | 26.75 | 25 |
| 1000 | 27 | 26 | 23.5 |
| 1500 | 26 | 25 | 22.75 |
| 2000 | 24.25 | 23.25 | 20.75 |
| 3000 | 19.25 | 17.75 | 15.25 |
| 4000 | 13.5 | 12.5 | 10.25 |
| 4500 | 10.5 | 9 | 9 |
| at 100 P.S.I. | at 80 P.S.I. | at 60 P.S.I. |

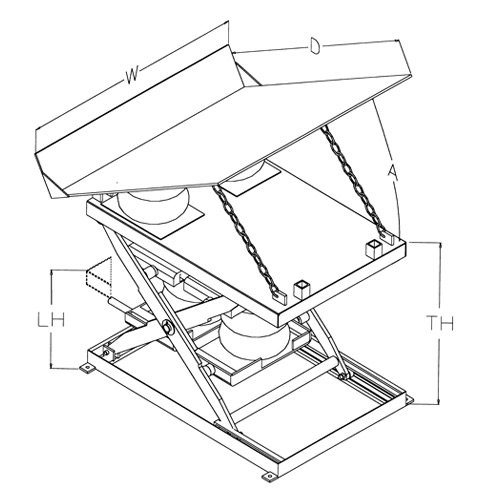

Side View
Air Bag Self Leveller
| ESL MODEL NO. | CAPACITY (Lbs.) | PLATFORM BASE (W x L) (In.) | LOW'D HEIGHT (LH) (In.) | TRAVEL (In.) | TOTAL HEIGHT (TH) (In.) | SHIP WEIGHT (Lbs.) |
|---|---|---|---|---|---|---|
| ESL45 | 450-4500 | 32 x 48 | 9 | 24 | 33 | 600 |
