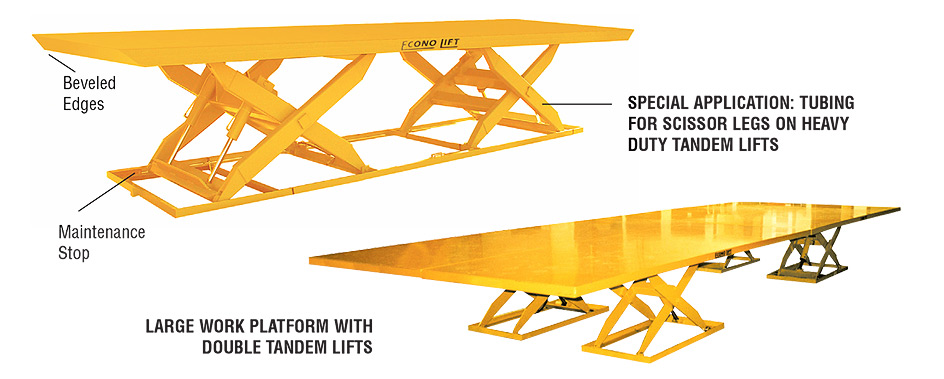

Options and Special Applications
PRODUCT INFO
The Tandem Scissor Lift is designed to increase stability and safely support longer loads during lifting and lowering. They offer you greater productivity output due to their ability to lift bigger and heavier loads.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Oversized platforms
- Beveled edges for pit mounting
- Eye-bolts for pit mounting
- Rotating tops (available)
– spring detents
– manual detents - Roller conveyor, Ball transfer tops
- Bellow safety skirting
- Safety tape switch
- Safety touch bars
- Semi-portable
- Portable
- 42” high hand rails with toe boards
- Diamond plate platform, ramp & flip plates
TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000/6,000/8,000/10,000/12,000 lbs
PLATFORM SIZES:
24″ wide x 96″ long to
48″ wide x 240″ long
TRAVEL:
36″, 48″, 60″
LOWERED HEIGHT:
9″ & 12″
SAFETY:
Velocity fuse is standard on each cylinder
Safety maintenance stop included with each lift
POWER SUPPLIES:
A/C 110/1/60 volt – Hand or foot operated
A/C 460/575/3/60 volt – Hand or foot operated
Air/Hydraulic – Foot operated, hand operated available
– Internally mounted
– Easily accessible for maintenance or repair
– Motor: Single phase 1 h.p. and three phase 1-1/2 h.p. hand or foot operated standard
MAINTENANCE:
Easy access to power unit and cylinders, maintenance bar provided
Self lubricated bronze bushings on all wear points
24" Wide Base Tandem Scissor Lift Tables
| TSL MODEL NO. | CAPACITY (Lbs.) | STD. PLATFORM BASE (W x L) (In.) | OVERSIZED PLAT. (Up to) (In.) | LOW HEIGHT (In.) | RAISED HEIGHT (In.) | UP SPEED (Sec.) | MOTOR (H.P.) | VOLT/HP/HZ | SHIP WEIGHT (Lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 36" Travel - 24" Wide x 96" Long Platform/Base | |||||||||
| TSL36-10 | 1000 | 24 x 96 | 48 x 144 | 9 | 45 | 20 | 1 | 110/1/60 | 920 |
| TSL36-20 | 2000 | 24 x 96 | 48 x 144 | 9 | 45 | 30 | 1 | 110/1/60 | 950 |
| TSL36-40 | 4000 | 24 x 96 | 48 x 144 | 9 | 45 | 40 | 1 | 110/1/60 | 1050 |
| TSL36-60 | 6000 | 24 x 96 | 48 x 144 | 9 | 45 | 35 | 1 | 208, 220, 460, 575/3/60 | 1100 |
| TSL36-80 | 8000 | 24 x 96 | 48 x 144 | 9 | 45 | 45 | 1 | 208, 220, 460, 575/3/60 | 1500 |
| TSL36-100 | 10000 | 24 x 96 | 48 x 144 | 9 | 45 | 55 | 1 | 208, 220, 460, 575/3/60 | 1550 |
| TSL36-120 | 12000 | 24 x 96 | 48 x 144 | 9 | 45 | 57 | 1 | 208, 220, 460, 575/3/60 | 1600 |
| 48" Travel - 24" Wide x 144" Long Platform/Base | |||||||||
| TSL48-10 | 1000 | 24 x 144 | 48 x 192 | 9 | 57 | 32 | 1 | 110/1/60 | 1100 |
| TSL48-20 | 2000 | 24 x 144 | 48 x 192 | 9 | 57 | 43 | 1 | 110/1/60 | 1200 |
| TSL48-40 | 4000 | 24 x 144 | 48 x 192 | 9 | 57 | 55 | 1 | 110/1/60 | 1300 |
| TSL48-60 | 6000 | 24 x 144 | 48 x 192 | 9 | 57 | 45 | 1 | 208, 220, 460, 575/3/60 | 1350 |
| TSL48-80 | 8000 | 24 x 144 | 48 x 192 | 9 | 57 | 55 | 1 | 208, 220, 460, 575/3/60 | 1700 |
| TSL48-100 | 10000 | 24 x 144 | 48 x 192 | 9 | 57 | 60 | 1 | 208, 220, 460, 575/3/60 | 1750 |
| TSL48-120 | 12000 | 24 x 144 | 48 x 192 | 9 | 57 | 62 | 1 | 208, 220, 460, 575/3/60 | 1800 |
| 60" Travel - 24" Wide x 176" Long Platform/Base | |||||||||
| TSL60-10 | 1000 | 24 x 176 | 48 x 224 | 9 | 69 | 38 | 1 | 110/1/60 | 1650 |
| TSL60-20 | 2000 | 24 x 176 | 48 x 224 | 9 | 69 | 50 | 1 | 110/1/60 | 1700 |
| TSL60-40 | 4000 | 24 x 176 | 48 x 224 | 9 | 69 | 60 | 1 | 110/1/60 | 1770 |
| TSL60-60 | 6000 | 24 x 176 | 48 x 224 | 9 | 69 | 50 | 1 | 208, 220, 460, 575/3/60 | 2000 |
| TSL60-80 | 8000 | 24 x 176 | 48 x 224 | 9 | 69 | 65 | 1 | 208, 220, 460, 575/3/60 | 2400 |
| TSL60-100 | 10000 | 24 x 176 | 48 x 224 | 9 | 69 | 78 | 1 | 208, 220, 460, 575/3/60 | 2500 |
| TSL60-120 | 12000 | 24 x 176 | 48 x 224 | 9 | 69 | 80 | 1 | 208, 220, 460, 575/3/60 | 2600 |
