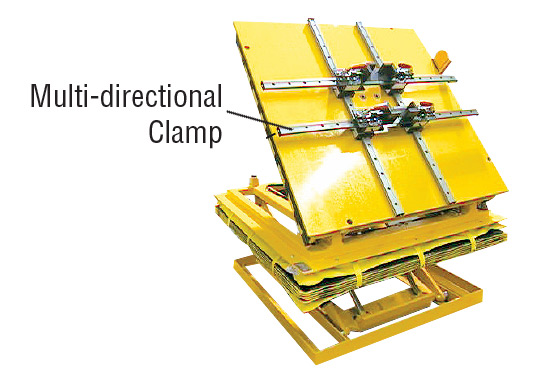

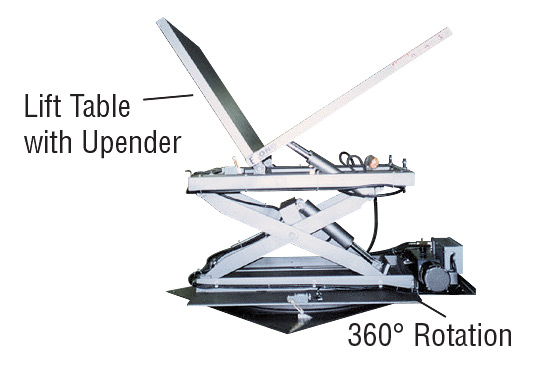

Options and Special Applications
PRODUCT INFO
The Lift/Tilt Table is designed to allow independent control of lift and tilt to precisely position containers or other items at the optimum height and tilt angle.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources

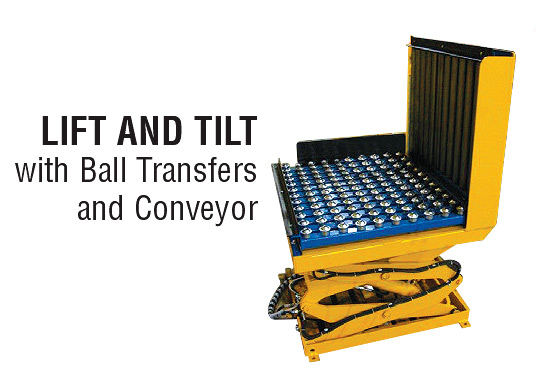

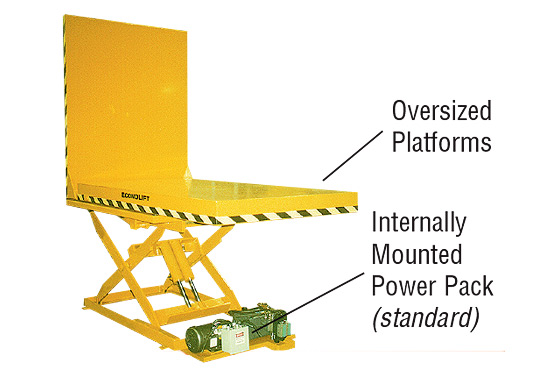

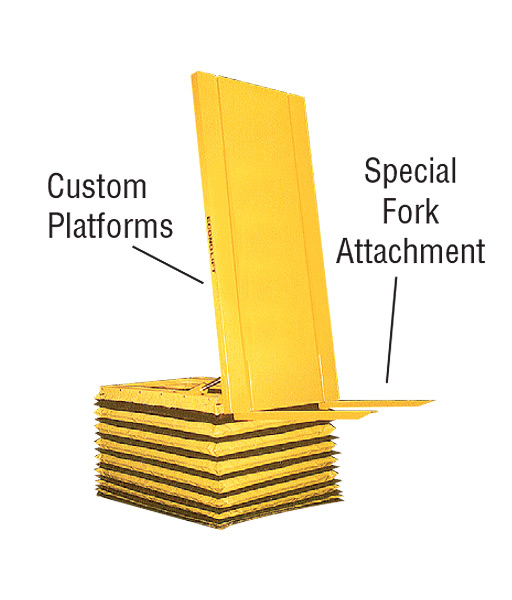

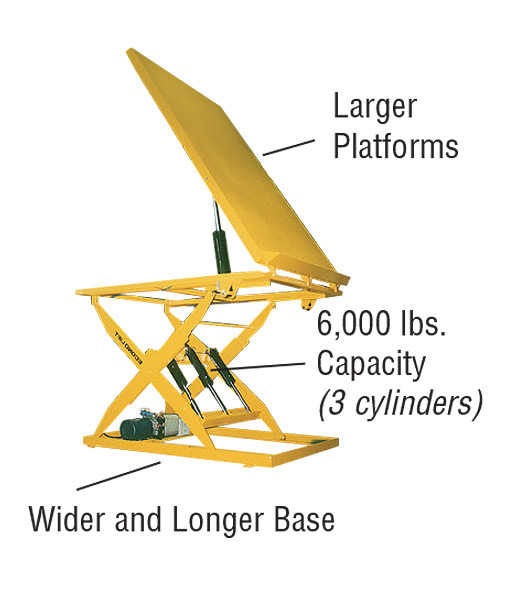

- Platforms: wider or deeper

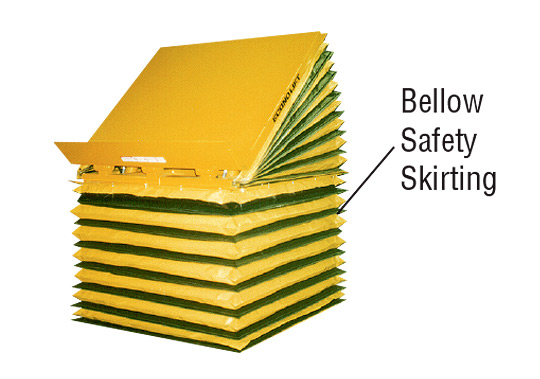

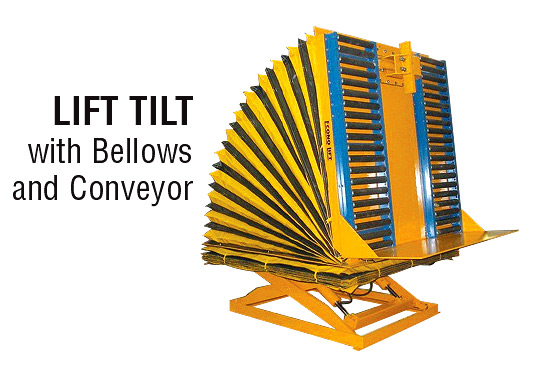

- Bellow safety skirting

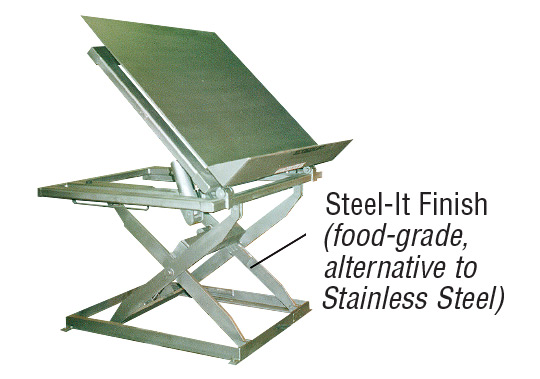

- Stainless steel, galvanized or ‘steel-it’ painted units

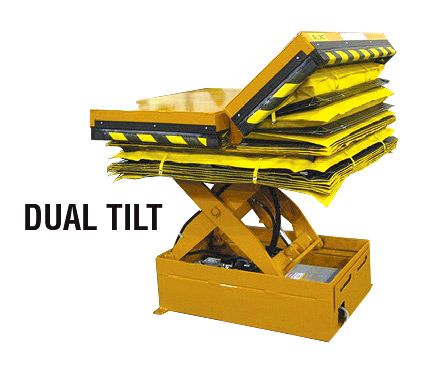

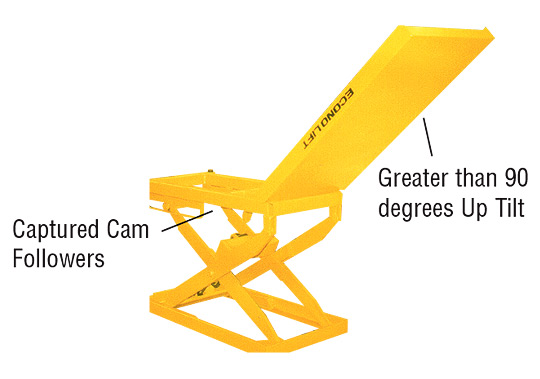

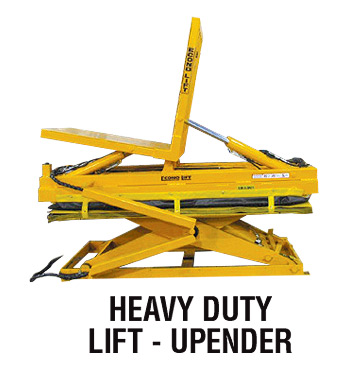

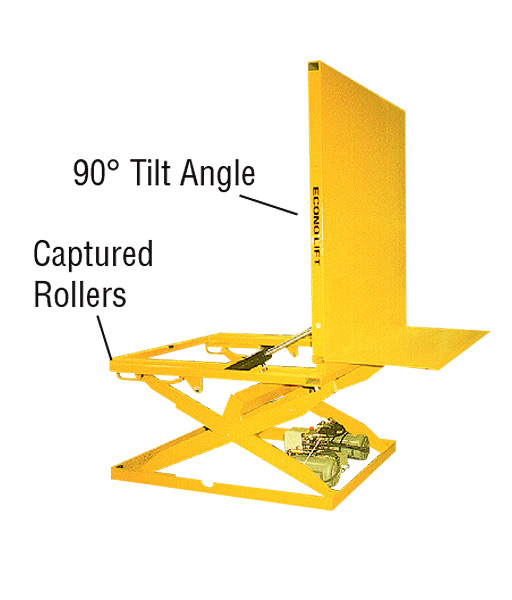

- Lift/tilt: reduced or increased
TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000 lbs
TILT ANGLE:
0-30/45 degrees
LOWERED HEIGHT:
12″
TRAVEL:
24″, 36″, 42″
SAFETY:
Velocity fuses on each cylinder to eliminate the table from collapsing due to hose failure
LOWERED HEIGHT:
9″
FRONT RETAINING LIP:
8″ high (standard)
POWER SUPPLIES:
A/C 110/1/60 volt – Hand or foot operated (standard)
A/C 460/575/3/60 volt – Hand or foot operated (optional)
Air/Hydraulic
– Foot operated (standard), hand operated (optional)
Lift/Tilt Tables
TR-SL MODEL NO. | CAPACITY (Lbs.) | LOW'D HEIGHT (In.) | TRAVEL (In.) | TOTAL HEIGHT (In.) | STD. PLATFORM & BASE (W x D) (In.) | OVERSIZE PLATFORM (Up to) (W x D) (In.) | TILT ANGLE (Degrees) | APPROX. UP SPEED (Sec.) | MOTOR (H.P.) |
---|---|---|---|---|---|---|---|---|---|
24" Travel - 48" Wide x 36" Long Platform/Base | |||||||||
TR-SL-24-10 | 1000 | 12 | 24 | 36 | 48 x 36 | 60 x 60 | 30 | 15 | 1 |
TR-SL-24-20 | 2000 | 12 | 24 | 36 | 48 x 36 | 60 x 60 | 30˚ | 21 | 1 |
TR-SL-24-40 | 4000 | 12 | 24 | 36 | 48 x 36 | 60 x 60 | 30 | 30 | 1-1/2 |
36" Travel - 48" Wide x 48" Long Platform/Base | |||||||||
TR-SL-36-10 | 1000 | 12 | 36 | 48 | 48 x 48 | 72 x 72 | 45 | 20 | 1 |
TR-SL-36-20 | 2000 | 12 | 36 | 48 | 48 x 48 | 72 x 72 | 45 | 30 | 1 |
TR-SL-36-40 | 4000 | 12 | 36 | 48 | 48 x 48 | 72 x 72 | 45 | 35 | 1-1/2 |
42" Travel - 60" Wide x 48" Long Platform/Base | |||||||||
TR-SL-42-10 | 1000 | 12 | 42 | 54 | 60 x 48 | 84 x 72 | 45 | 25 | 1 |
TR-SL-42-20 | 2000 | 12 | 42 | 54 | 60 x 48 | 84 x 72 | 45 | 35 | 1 |
TR-SL-42-40 | 4000 | 12 | 42 | 54 | 60 x 48 | 84 x 72 | 45 | 45 | 1-1/2 |
