PRODUCT INFO
The Stationary Upender is designed for palletizing and depalletizing rolls, coils, barrels, and other materials that are difficult or dangerous to handle without specialty equipment, while reducing the possibility of product damage.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- A/C 220/460/575, three phase available
- Hand or foot control (standard)
- Larger/smaller platforms

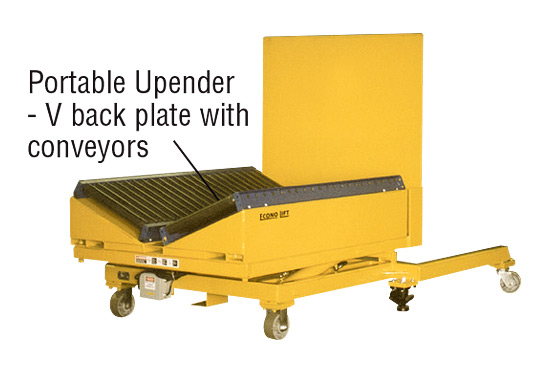

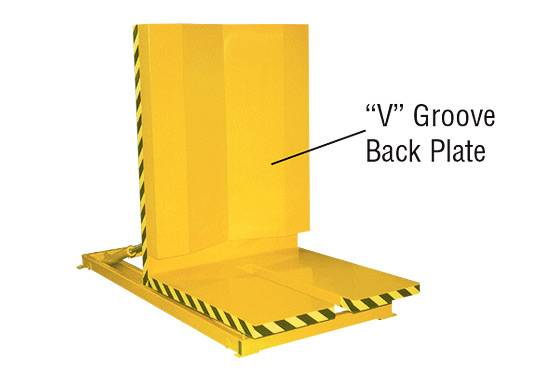

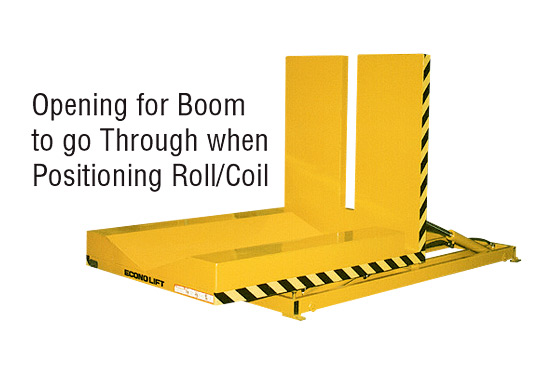

- “V” backplates for rolls/coils

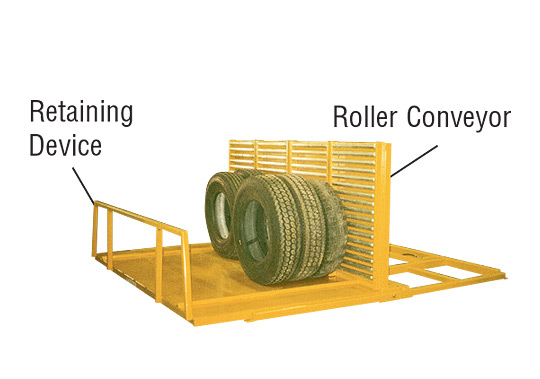

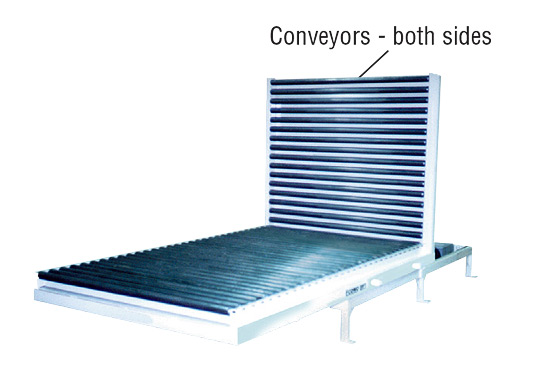

- Conveyors

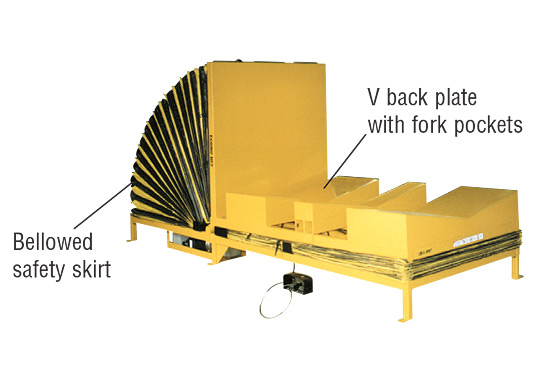

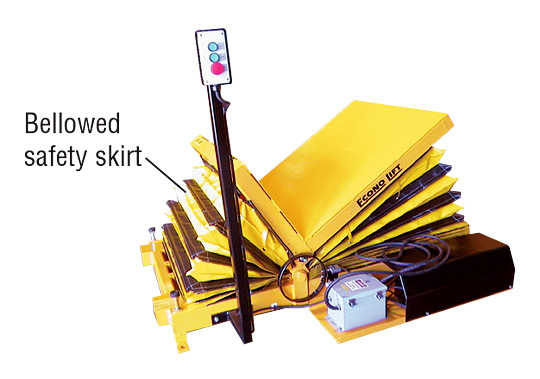

- Safety skirting
TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000/6,000 lbs
LOWERED HEIGHT:
10″
TILT ANGLE:
0 – 90˚
CYLINDERS:
Double acting
SAFETY:
Velocity fuses on each cylinder to eliminate the table from collapsing
Hold down tabs on all four corners
POWER SUPPLY:
A/C 110 volt, single phase (standard)
– Draws 15+ amps
– Hand or foot control

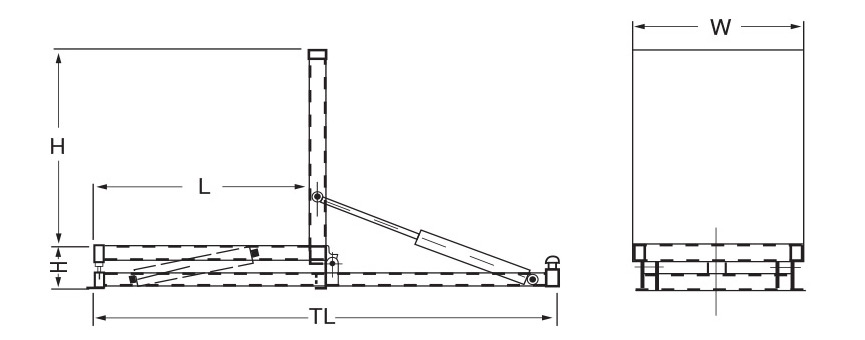

Side & Top View
Stationary Upenders
| SU MODEL NO. | CAPACITY (Lbs.) | PLATFORM SIZE (W x L x H) (In.) | LOW'D HEIGHT (TP) (In.) | TOTAL LENGTH (In.) | TILT ANGLE (Degrees) |
|---|---|---|---|---|---|
| SU36-10 | 1000 | 36 x 36 x 36 | 10 | 76 | 0-90 |
| SU36-20 | 2000 | 36 x 36 x 36 | 10 | 76 | 0-90 |
| SU36-40 | 4000 | 36 x 36 x 36 | 10 | 76 | 0-90 |
| SU36-60 | 6000 | 36 x 36 x 36 | 10 | 76 | 0-90 |
| SU52-10 | 1000 | 52 x 52 x 52 | 10 | 108 | 0-90 |
| SU52-20 | 2000 | 52 x 52 x 52 | 10 | 108 | 0-90 |
| SU52-40 | 4000 | 52 x 52 x 52 | 10 | 108 | 0-90 |
| SU52-60 | 6000 | 52 x 52 x 52 | 10 | 108 | 0-90 |
