SELF PROPELLED PORTABLE SKID LIFTS

Self Propelled Portable Skid Lifts

PRODUCT INFO

The Self Propelled Portable Skid Lift is designed to provide portable, ergonomic load positioning and convenient working height for easy mobility and maneuverability. This electric-powered scissor lift table is perfect for applications where raising and lowering are more frequent.

  • Makes parts easily reachable
  • Prevents back strain
  • Increases productivity.

TECHNICAL SPECIFICATIONS

CAPACITY:

1,500/3,000 lbs

DRIVE UNIT/ELECTRICS:

24 volt system
Variable speed control – forward/reverse
Built in 24 volt charger

CONTROL HEAD:

Butterfly switches for forward and reverse
Push buttons for raising and lowering of forks
Built in horn

BRAKES:

Engaged in upper thru lower position of the steering column when power is turned off
Electro-mechanical brake system

STEERING:

180 degree turning radius
Handle ergonomically designed

POWER SUPPLIES:

D/C Battery – 24 volt system

OPTIONS & Resources

  • Longer forks
  • Industrial battery
  • Industrial charger
  • Battery discharge indicator
  • Hour meter

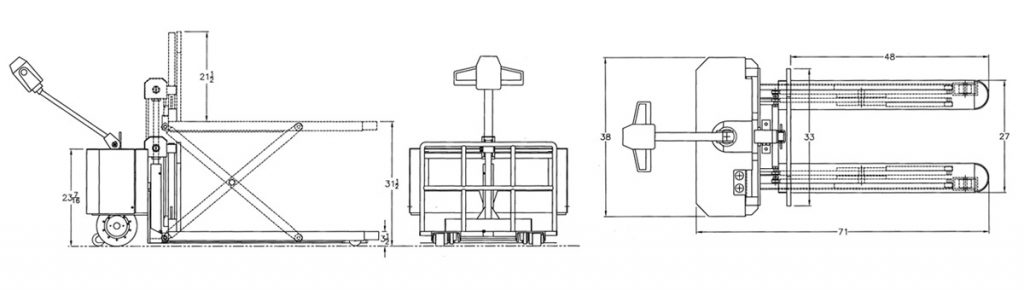

Side & Top View

Self Propelled Portable Skid Lifts Dimensional Drawings (Side & Top)

Self Propelled Portable Skid Lifts

PPSL
MODEL NO.
CAPACITY
(Lbs.)
FORK DIMENSIONS
(W x L) (In.)
FORK HEIGHT
LOWERED
(In.)
FORK HEIGHT
RAISED
(In.)
SHIP WEIGHT
(Lbs)

PPSL-15B150027 x 483.531.5600
PPSL-30B300027 x 483.531.5800
