PRODUCT INFO

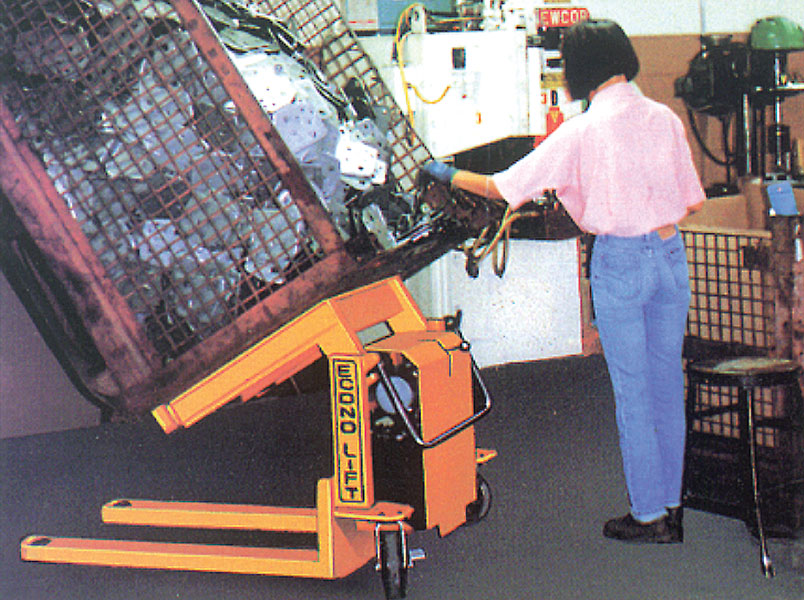

The portable tote box tilter is designed to make the lifting, handling and positioning of small parts containers easy on the worker’s back. Tilts hydraulically to 94°
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
TECHNICAL SPECIFICATIONS
CAPACITY:
2,000/4,000/6,000 lbs
POWER SUPPLIES:
DC Battery – Joy stick controlled
Air/Hydraulic – Foot Pedal
A/C 115/60/1 – Hand Held Pendant
OPTIONS & Resources
- Forks – longer/shorter, higher/lower, wider/narrower
- Tray attachment
- Height of backplate at 90˙ can be higher or lower
Side & Top View
Tote Box Tilters
| SPECIFICATIONS | TR20 | TR40/TR60 | |
|---|---|---|---|
| Capacity (lbs) | 2,000 | 4,000/6,000 | |
| A | Load Centre | 17 in. | 21 in. |
| B | Lowered Height | 3-1/2 in. | 3-1/2 in. |
| C | Lift | 35-1/2 in. | 35-1/2 in. |
| D | Tilt Angle | 94˚ | 94˚ |
| E | Fork Length | 34 in. | 42 in. |
| F | Fork Width O.D. | 21 in. | 27 in. |
| G | Fork Width | 6 in. | 7 in. |
| H | Overall Length | 48 in. | 58 in. |
| K | Width | 28 in. | 36 in. |
| L | Height | 27-1/2 in. | 28 in. |
| Weight | 500 lbs. | 600 lbs. | |
| Load Wheels | 3 x 1-1/2 in. | 3 x 1-1/2 in. | |
| Castor | 6 in. | 8 in. | |
| Capacity (lbs) | 2,000 | 4,000/6,000 |
