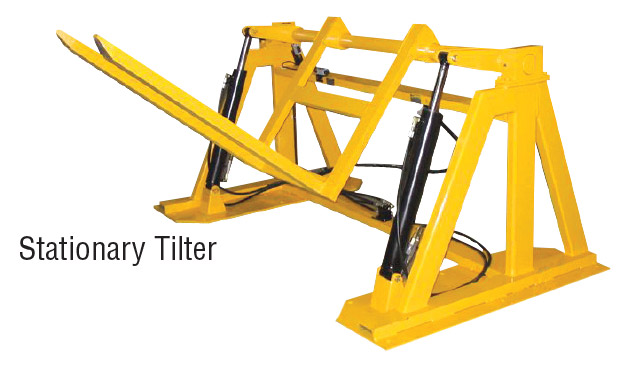

Options and Special Applications
PRODUCT INFO

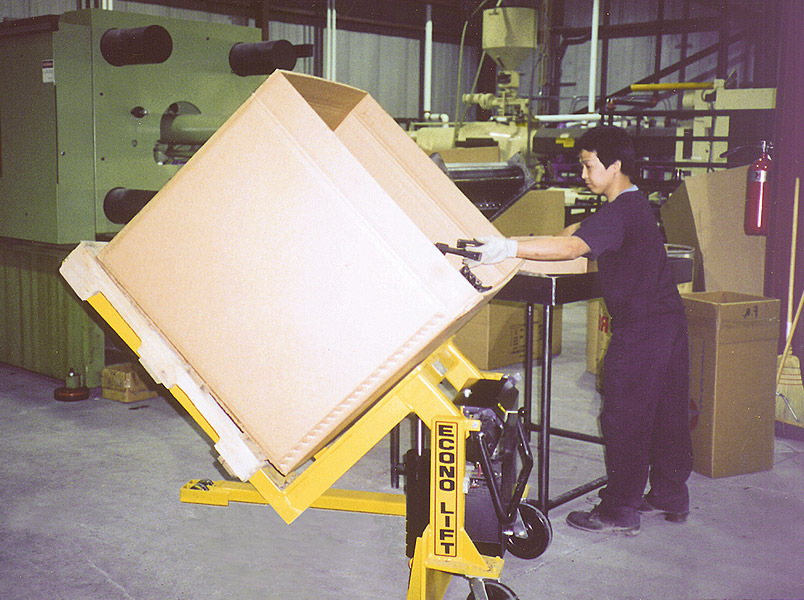

The portable straddle tilter is designed to make the lifting, handling and positioning of small parts containers easy on the worker’s back. Tilts hydraulically to 94°
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
TECHNICAL SPECIFICATIONS
CAPACITY:
2,000/4,000/6,000 lbs
POWER SUPPLIES:
DC Battery – Joy stick controlled

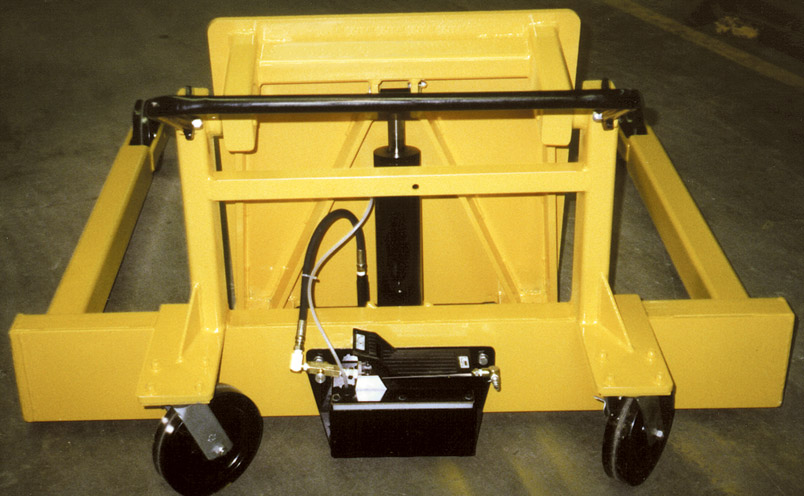

Air/Hydraulic – Foot pedal (80 p.s.i., 20 c.f.m.)
A/C 115/60/1 – Hand held pendant
OPTIONS & Resources

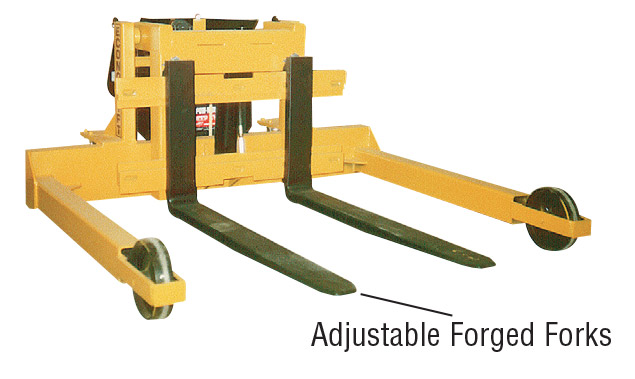

- Forks – longer/shorter, higher/lower, wider/narrower

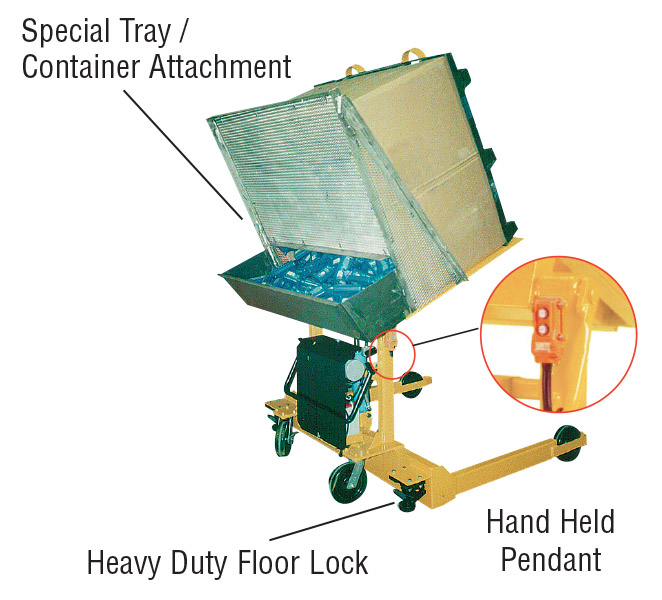

- Tray attachment

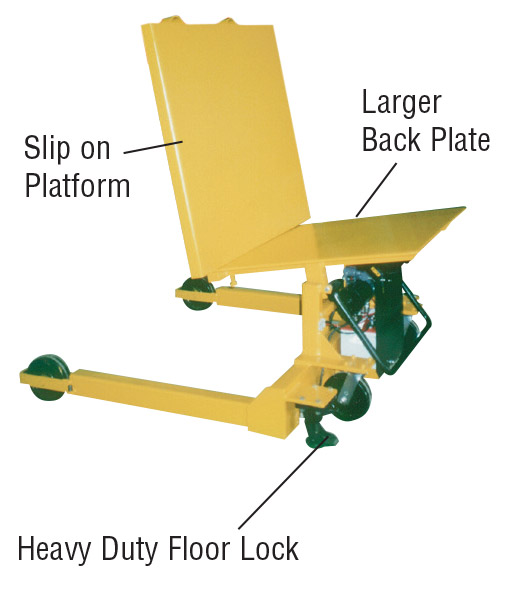

- Height of backplate at 90˙ can be higher or lower

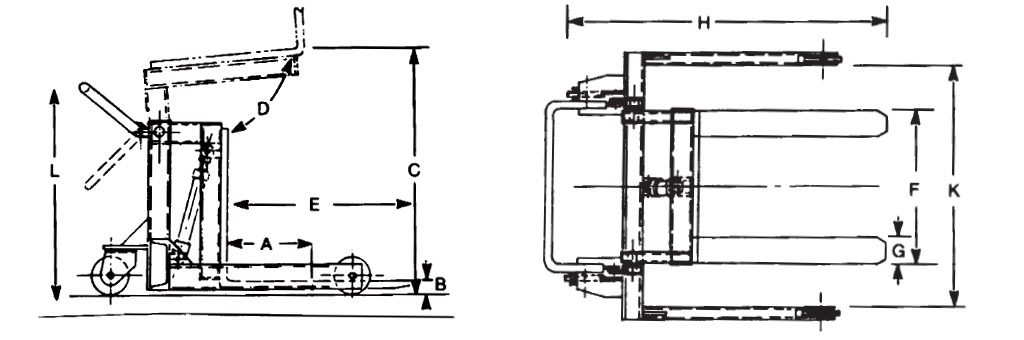

Side & Top View
| SPECIFICATIONS | TRS20 | TRS40/TRS60 | |
|---|---|---|---|
| Capacity (lbs) | 2,000 | 4,000/6,000 | |
| A | Load Centre | 21 in. | 20 in. |
| B | Lowered Height | 2-1/2 in. | 2-1/2 in. |
| C | Lift | 35-1/2 in. | 35-1/2 in. |
| D | Tilt Angle | 94˚ | 94˚ |
| E | Fork Length | 42 in. | 42 in. |
| F | Fork Width - Fixed | 27 in. | 27 in. |
| G | Fork Width | 4 in. | 4 in. |
| H | Overall Length | 62 in. | 62 in. |
| K | Width | 50 in. | 50 in. |
| L | Height | 27-1/2 in. | 27-1/2 in. |
| Weight | 650 lbs. | 700 lbs. | |
| Load Wheels | 8 in. | 8 in. | |
| Castor | 8 in. | 8 in. | |
| Capacity (lbs) | 2,000 | 4,000/6,000 |
