The Drive-On Lift/Tilt Table is designed for those applications where lift and tilting the load provides for improved access to the product. Hydraulically tilts parts to efficient work angles up to 45°.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Different platform sizes

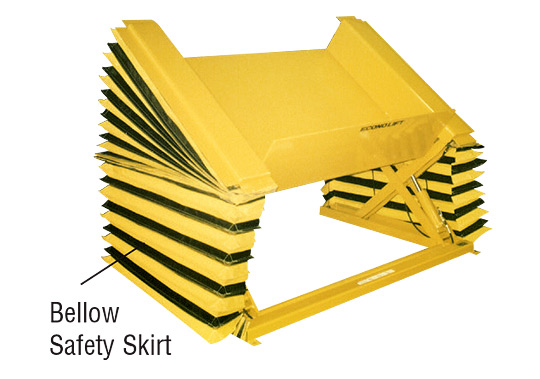

- Bellow safety skirting // safety touch bars
- Vertical travel – high or lower
- Limit switches / photo eyes
- Eye bolts – for moving lifts easily
- Semi Portable – for moving empty lifts, c/w dolly handle
TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000 lbs
TRAVEL:
30″, 38″
TILT ANGLE:
0- 45˚
SAFETY:
Velocity fuse on each cylinder to eliminate tables from collapsing due to hose failure
Hold down tabs on all four corners
LOWERED HEIGHT:
Floor level
POWER SUPPLIES:
A/C 110 volt (standard)
– Single phase motor (hand or foot operated controls standard)
– Draws approximately 15 amps
A/C 460/575 volt (optional)
– Three phase motors
Air/Hydraulic – Foot operated (standard)
– Hand held pendent (optional)
Side View
Drive-On Lift/Tilt Tables
| DO-SL/TRT MODEL NO. | CAPACITY (Lbs.) | PLATFORM SIZE (W1 x L1) (in.) | LOW'D HEIGHT (TP) (In.) | VERTICAL TRAVEL (H2) (In.) | OVERALL SIZE (W2 x L2) (in.) | LOW'D HEIGHT (H1) (In.) | OVERALL HEIGHT (H3) (In.) |
|---|---|---|---|---|---|---|---|
| DO-SL/TRT 30-10 | 1000 | 50 x 50 | 3/8 | 30 | 68.5 x 56 | 12 | 42 |
| DO-SL/TRT 30-20 | 2000 | 50 x 50 | 3/8 | 30 | 68.5 x 56 | 12 | 42 |
| DO-SL/TRT 30-40 | 4000 | 50 x 50 | 1/2 | 30 | 68.5 x 56 | 12 | 42 |
| DO-SL/TRT 38-10 | 1000 | 50 x 60 | 3/8 | 38 | 68.5 x 66 | 12 | 50 |
| DO-SL/TRT 38-20 | 2000 | 50 x 60 | 3/8 | 38 | 68.5 x 66 | 12 | 50 |
| DO-SL/TRT 38-40 | 4000 | 50 x 60 | 1/2 | 38 | 68.5 x 66 | 12 | 50 |
