TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000/6,000 lbs
TILT ANGLE:
0 – 40˚
LOWERED HEIGHT:
15″
TRAVEL:
24″
FRONT RETAINING LIP:
8″ high (standard)
POWER SUPPLY:
Pedestal mounted hand control (up/down valve)
Covered Foot Control (optional)
PRODUCT INFO
The Air Bag Lift/Tilt Table is designed using bellows type bags which contain a column of compressed air that provides the lifting force. No electrical power is needed to operate. Twice the ergonomic benefit by lifting and tilting loads to precise heights and angles, creating a safe and efficient workplace.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Platforms: wider or deeper

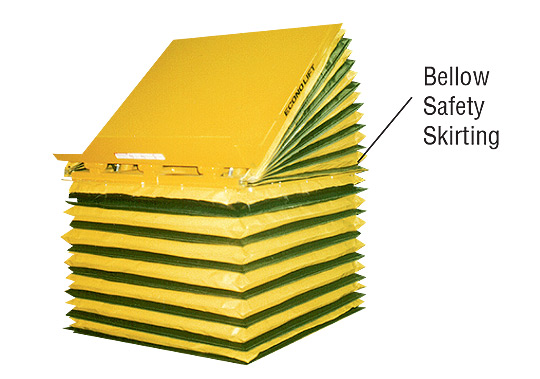

- Bellow safety skirting
- Stainless steel, galvanized or ‘steel-it’ painted units
- Lift/tilt: reduced
- Ross valves
Side View
Air Bag Lift/Tilt Tables
ABTR MODEL NO. | CAPACITY (Lbs.) | STD. PLATFORM BASE (W x L) (In.) | OVERSIZE PLATFORMS (Up to) (In.) | LOW'D HEIGHT (LH) (In.) | TRAVEL (In.) | RAISED HEIGHT (TH) (In.) | TILT ANGLE (A) (Degrees) | SHIP WEIGHT (Lbs.) |
---|---|---|---|---|---|---|---|---|
36" Wide x 48" Long Platform/Base | ||||||||
ABTR-SL10-3660 | 1000 | 36 x 48 | 60 x 72 | 15 | 24 | 39 | 30 | 1000 |
ABTR-SL20-3660 | 2000 | 36 x 48 | 60 x 72 | 15 | 24 | 39 | 30 | 1150 |
ABTR-SL40-3660 | 4000 | 36 x 48 | 60 x 72 | 15 | 24 | 39 | 30 | 1295 |
ABTR-SL60-3660 | 6000 | 36 x 48 | 60 x 72 | 15 | 24 | 39 | 30 | 1395 |
48" Wide x 48" Long Platform/Base | ||||||||
ABTR-SL10-4848 | 1000 | 48 x 48 | 72 x 72 | 15 | 24 | 39 | 30 | 1195 |
ABTR-SL20-4848 | 2000 | 48 x 48 | 72 x 72 | 15 | 24 | 39 | 30 | 1295 |
ABTR-SL40-4848 | 4000 | 48 x 48 | 72 x 72 | 15 | 24 | 39 | 30 | 1395 |
ABTR-SL60-4848 | 6000 | 48 x 48 | 72 x 72 | 15 | 24 | 39 | 30 | 1495 |
60" Wide x 48" Long Platform/Base | ||||||||
ABTR-SL10-6048 | 1000 | 60 x 48 | 84 x 72 | 15 | 24 | 39 | 30 | 1295 |
ABTR-SL20-6048 | 2000 | 60 x 48 | 84 x 72 | 15 | 24 | 39 | 30 | 1395 |
ABTR-SL40-6048 | 4000 | 60 x 48 | 84 x 72 | 15 | 24 | 39 | 30 | 1495 |
ABTR-SL60-6048 | 6000 | 60 x 48 | 84 x 72 | 15 | 24 | 39 | 30 | 1595 |
