The portable powered tilter is designed to make the lifting, handling and positioning of small parts containers easy on the worker’s back. Tilts hydraulically to 94°
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
TECHNICAL SPECIFICATIONS
CAPACITY:
2,000/4,000/6,000 lbs
DRIVE/ELECTRICS:
24 volt system
Two speeds forward/reverse
Solenoid controlled
CONTROL HEAD:
Butterfly switches for forward/reverse
Push buttons for raising/lowering of tilt feature
BRAKES:
Engaged in upper/lower position of the steering column
Mechanical brake system
STEERING:
180˚ degree turning radius
Handle held under braket off to side of closer access to container
POWER SUPPLIES:
DC Battery
24 volt push button

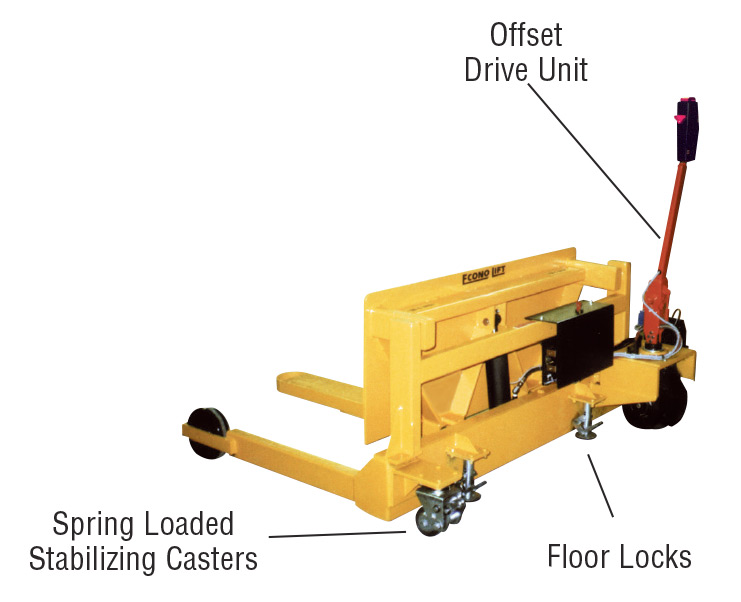

OPTIONS & Resources
- Forks – longer/shorter, higher/lower to 3″, wider/narrower

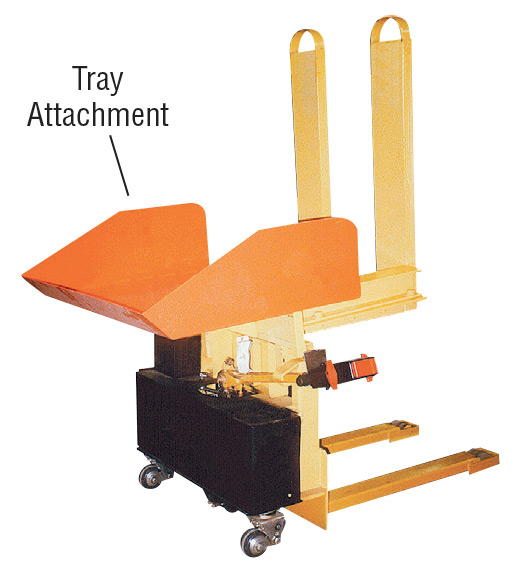

- Tray attachment to pick parts out from
- Height of backplate at 90˚ can be higher or lower

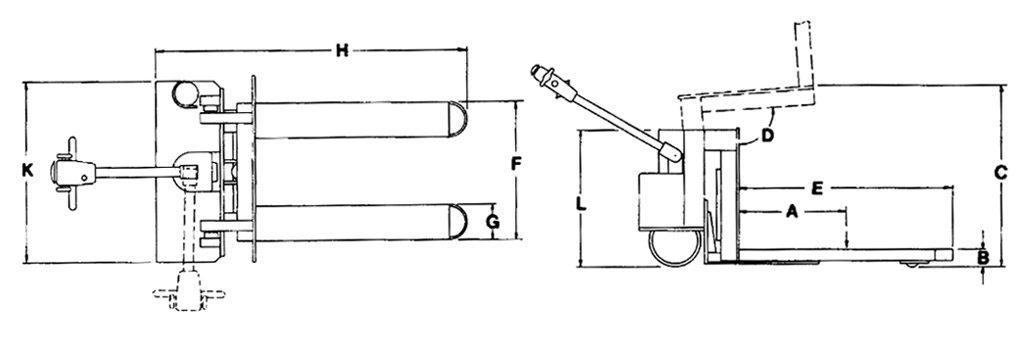

Side & Top View
| SPECIFICATIONS | PTR20 | PTR40/PTR60 | |
|---|---|---|---|
| Capacity (lbs) | 2,000 | 4,000/6,000 | |
| A | Load Centre | 17 in. | 21 in. |
| B | Lowered Height | 3-1/2 in. | 3-1/2 in. |
| C | Lift | 35-1/2 in. | 35-1/2 in. |
| D | Tilt Angle | 94˚ | 94˚ |
| E | Fork Length | 34 in. | 42 in. |
| F | Fork Width - Fixed | 21 in. | 27 in. |
| G | Fork Width | 6 in. | 7 in. |
| H | Overall Length | 54 in. | 62 in. |
| K | Width | 35 in. | 35 in. |
| L | Height | 27-1/2 in. | 28 in. |
| Weight | 700 lbs. | 800 lbs. | |
| Load Wheels | 3 x 1-1/2 in. | 3 x 1-1/2 in. | |
| Castor | 5 in. | 5 in. | |
| Rubber Drive Tire | 10-1/2 x 3-1/2 in. | 10-1/2 x 3-1/2 in. | |
| Capacity (lbs) | 2,000 | 4,000/6,000 |
