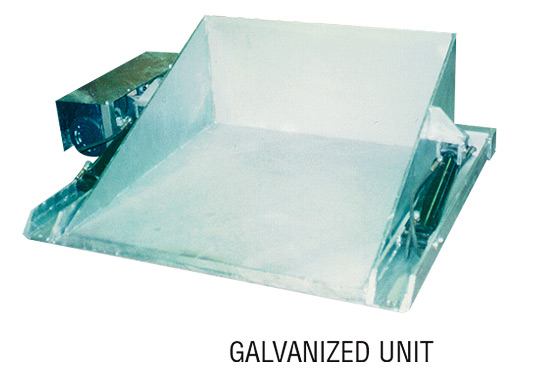

Options and Special Applications
PRODUCT INFO
The Drive-On Tilt Table is designed to permit floor level access to the lift platform. No need for pits or ramps. Hydraulically tilts parts to efficient work angles up to 45°.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Different platform sizes
- Bellow safety skirting
- Limit switches
- Photo Eye
- Semi-portable c/w dolly handle
TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000 lbs
TILT ANGLE:
0- 45˚
SAFETY:
Velocity fuse on each cylinder to eliminate tables from collapsing due to hose failure
Hold down tabs on all four corners
LOWERED HEIGHT:
Floor level
POWER SUPPLIES:
A/C 110 volt (standard)
– Single phase motor (hand or foot operated controls available)
A/C 460/575 volt (optional)
– Three phase motors
Air/Hydraulic (standard) – Foot operated
Side View
Drive-On Tilt Tables
| DO-TRT MODEL NO. | CAPACITY (Lbs.) | PLATFORM SIZE (W1 x L1) (In.) | LOW'D HEIGHT (TP) (In.) | TILT ANGLE (Degrees) | OVERALL SIZE (W2 x L2) (In.) |
|---|---|---|---|---|---|
| DO-TRT10-4450 | 1000 | 44 x 50 | 3/8 | 45 | 55 x 54 |
| DO-TRT20-4450 | 2000 | 44 x 50 | 3/8 | 45 | 55 x 54 |
| DO-TRT40-4450 | 4000 | 44 x 50 | 1/2 | 45 | 55 x 54 |
| DO-TRT10-5050 | 1000 | 50 x 50 | 3/8 | 45 | 61 x 54 |
| DO-TRT20-5050 | 2000 | 50 x 50 | 3/8 | 45 | 61 x 54 |
| DO-TRT40-5050 | 4000 | 50 x 50 | 1/2 | 45 | 61 x 54 |
