Options and Special Applications
PRODUCT INFO
The Portable Drum Dumper is designed to enable you to safely dump and control pour, almost any drum. Variable lifting heights and minimal space allocation required.
- Ergonomic
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Increase/decrease: platform, diameter of backplate, dump height, tilt angle

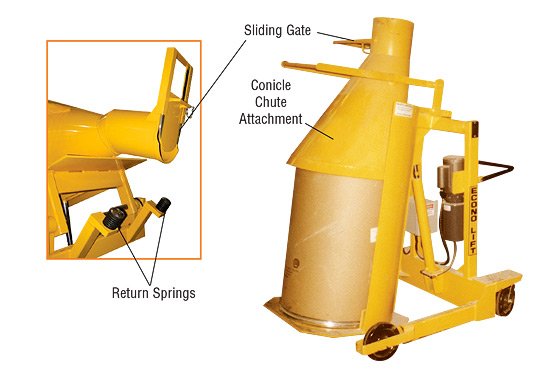

- Chute attachments
- Fixed retaining bars
- Stainless Steel
- Galvanized
- “Steel-it” epoxy finish paint
- Limit switches

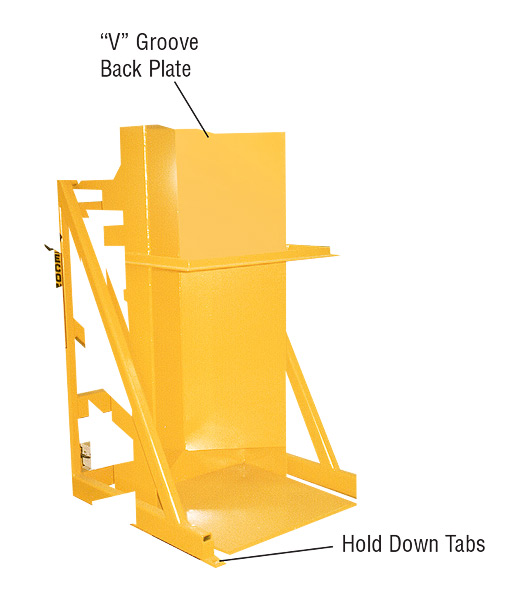

- “V” groove back plate
TECHNICAL SPECIFICATIONS
CAPACITY:
750/1,000/2,000 lbs
DUMP HEIGHTS:
36″, 48″, 60″
BACKPLATE DIAMETER:
24″
PLATFORM SIZE:
24″ x 24″
CASTERS/WHEELS:
8″ diameter x 2″ wide
RETAINING BAR:
Fixed or adjustable
SAFETY:
Velocity fuse (in case of hose failure it will stop unit from coming down)
Down flow control – built into power pack, (pressure compensated)
Heavy duty floor lock
POWER SUPPLY:
A/C 110/1/60 volt – Hand hand pendant pendant (standard)
A/C 230/460/575/3/60 power (optional)
Air/Hydraulic – Foot control (standard), Hand held pendant (optional)
Portable Drum Dumpers
| PDD MODEL NO. | CAPACITY (Lbs.) | DUMP HEIGHT (In.) | CHUTE REACH (In.) | BACKPLATE DIAM. (in.) | DUMP ANGLE (Degrees) | EXT. OVERHEAD HEIGHT (In.) | OVERALL DIMENSIONS (W x L) (In.) | SHIP WEIGHT (Lbs.) |
|---|---|---|---|---|---|---|---|---|
| PDD36-7.5 | 750 | 36 | 25 | 24 | 0-120 | 90 | 34 x 51 | 625 |
| PDD36-10 | 1000 | 36 | 25 | 24 | 0-120 | 90 | 34 x 51 | 675 |
| PDD36-20 | 2000 | 36 | 25 | 24 | 0-120 | 90 | 34 x 51 | 800 |
| PDD48-7.5 | 750 | 48 | 15 | 24 | 0-120 | 98 | 34 x 51 | 650 |
| PDD48-10 | 1000 | 48 | 15 | 24 | 0-120 | 98 | 34 x 51 | 700 |
| PDD48-20 | 2000 | 48 | 15 | 24 | 0-120 | 98 | 34 x 51 | 850 |
| PDD60-7.5 | 750 | 60 | 15 | 24 | 0-120 | 118 | 34 x 51 | 690 |
| PDD60-10 | 1000 | 60 | 15 | 24 | 0-120 | 118 | 34 x 51 | 750 |
| PDD60-20 | 2000 | 60 | 15 | 24 | 0-120 | 118 | 34 x 51 | 900 |
