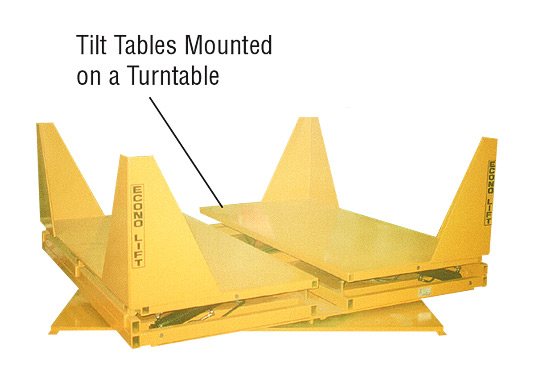

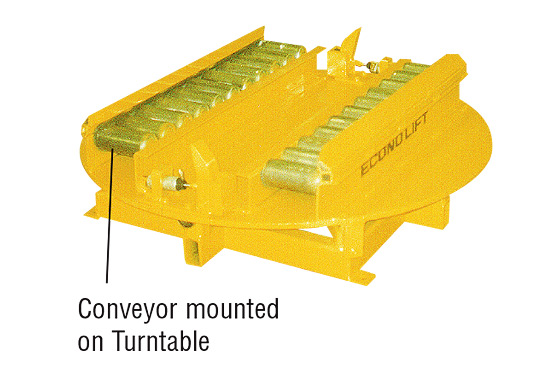

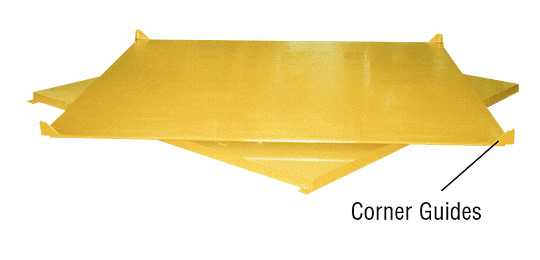

Options and Special Applications
PRODUCT INFO
The Manual Turntable is designed for positioning jobs where heavy duty loads must be rotated on a regular basis and are available in low profile and high profile configurations.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Spring loaded detents
- Manual detents
- Larger / smaller platforms
TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000/6,000 lbs
BEARINGS:
2″ diameter sealed ball bearing type
ROTATION:
360˚
LOW HEIGHT:
5″
Manual Turntables
TT MODEL NO. | CAPACITY (Lbs.) | PLATFORM SIZE (W1 x L1) (In.) | OVERSIZED PLATFORM (Up to) (In.) | LOW'D HEIGHT (In.) | SHIP WEIGHT (Lbs.) |
---|---|---|---|---|---|
TT24-10 | 1000 | 24 x 24 | 40 x 40 | 5 | 190 |
TT24-20 | 2000 | 24 x 24 | 40 x 40 | 5 | 210 |
TT24-40 | 4000 | 24 x 24 | 40 x 40 | 5 | 240 |
TT24-60 | 6000 | 24 x 24 | 40 x 40 | 5 | 255 |
TT48-10 | 1000 | 48 x 48 | 60 x 60 | 5 | 350 |
TT48-20 | 2000 | 48 x 48 | 60 x 60 | 5 | 375 |
TT48-40 | 4000 | 48 x 48 | 60 x 60 | 5 | 450 |
TT48-60 | 6000 | 48 x 48 | 60 x 60 | 5 | 475 |
