DRIVE-ON HIGH POINT TILTERS

Drive-On High Point Tilters

Options and Special Applications

PRODUCT INFO

The Drive-On High Point Tilter is designed for ease of positioning product containers using a common manual pallet truck. Easy access also reduces the potential for damage to the product. The front edge of the tilter platform is beveled to assure a smooth, effortless transfer both on and off the platform surface. Hydraulically tilts parts to efficient work angles up to 90°.

  • Makes parts easily reachable
  • Prevents back strain
  • Increases productivity.

OPTIONS & Resources

  • Photo Eyes
  • Safety Skirts
  • Increase/restrict tilt angle
  • Full plated platform
  • Increase/reduce platform size
  • Semi-portable c/w dolly handle

TECHNICAL SPECIFICATIONS

CAPACITY:

1,000/2,000/4,000 lbs

TILT ANGLE:

0- 90˚

SAFETY:

Velocity fuse on each cylinder to eliminate collapsing due to hose failure
Maximum reach in tilted position to end of back plate – 30”

POWER SUPPLIES:

Air/Hydraulic (standard) – Foot pedal (standard), hand control (optional)

A/C 110/1/60 volt (standard) – Hand or foot control

A/C 460/575/3/60 volt (optional) – Hand or foot control

Side View

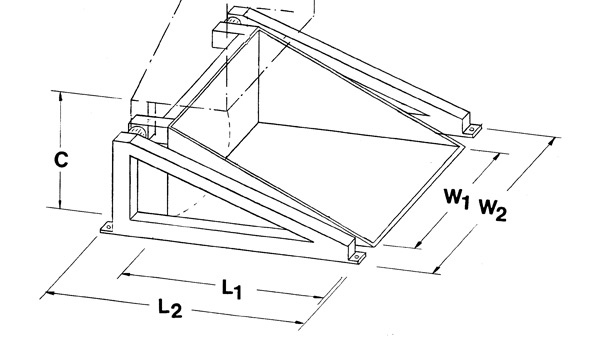

Drive-On High Point Tilter Dimensional Drawing (Side)

Drive-On High Point Tilters

SPECIFICATIONSDO-HPT10DO-HPT20DO-HPT40
Capacity (Lbs)1,0002,0004,000
Platform Size (In.)
(W1 x L1)
50 x 48
or
60 x 50
50 x 48
or
60 x 50
50 x 48
or
60 x 50
Platform Thickness (TP)3/8"3/8"3/8"
Tilt Angle0 - 90˚0 - 90˚0 - 90˚
Height from Floor @ 90˚ (C)32 in.32 in.32 in.
Height of Back Plate30 in.30 in.30 in.
Total Dimensions (In.)
(W2 x L2)
57 x 59.5
or
67 x 61.5
57 x 59.5
or
67 x 61.5
57 x 59.5
or
67 x 61.5
Capacity (Lbs)1,0002,0004,000
