Options and Special Applications
PRODUCT INFO
The Drive-On Lift Table is designed to permit floor level access by pallet trucks and other material handling equipment.
- Makes parts easily reachable
- Prevents back strain
- Increases productivity.
OPTIONS & Resources
- Different platform sizes
- Bellow safety skirting / safety touch bars
- Vertical travel – high or lower

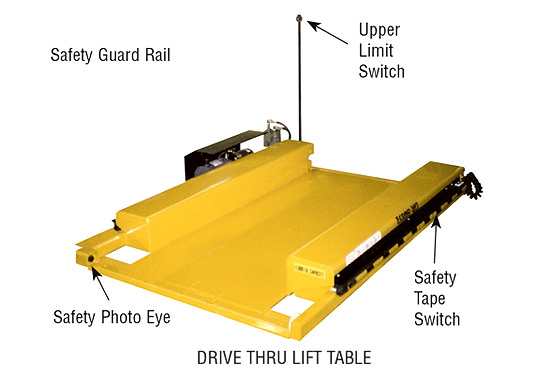

- Limit switches / photo eyes
- Eye bolts – for moving lifts easily

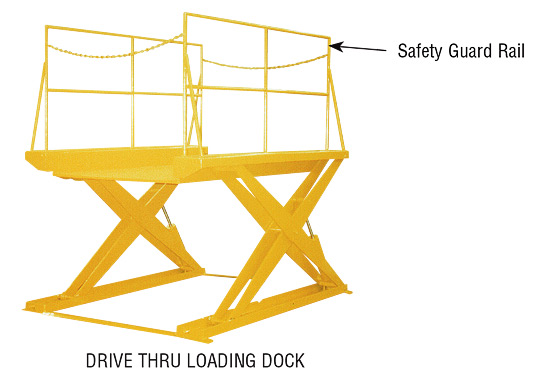

- Drive through c/w flip down plate
- Semi-portable c/w dolly handle
TECHNICAL SPECIFICATIONS
CAPACITY:
1,000/2,000/4,000 lbs
TRAVEL:
30″, 38″
LOWERED HEIGHT:
Floor level
SAFETY:
Velocity fuse on each cylinder to eliminate tables from collapsing due to hose failure
Hold down tabs on all four corners
POWER SUPPLIES:
A/C 115 volt, 1 h.p. (standard)
Single phase motor (hand or foot operated controls standard)
A/C 220/460/575 volt, 1 h.p.
Three phase motors (optional hand or foot operated controls available)
Air/Hydraulic (standard) – Foot operated (hand held pendant available)
Drive-On Lift Tables
| DO-SL MODEL NO. | CAPACITY (Lbs.) | PLATFORM SIZE (W1 x L1) (In.) | LOW'D HEIGHT (TP) (In.) | VERTICAL TRAVEL (H2) (In.) | OVERALL SIZE (W3 x L3) (In.) | PONTOON LOW'D HEIGHT (H1) (In.) | OVERALL HEIGHT (H3) (In.) |
|---|---|---|---|---|---|---|---|
| DO-SL 30-10 | 1000 | 44 x 50 | 3/8 | 30 | 62.5 x 57 | 8 | 38 |
| DO-SL 30-20 | 2000 | 44 x 50 | 3/8 | 30 | 62.5 x 57 | 8 | 38 |
| DO-SL 30-40 | 4000 | 44 x 50 | 1/2 | 30 | 62.5 x 57 | 9 | 39 |
| DO-SL 38-10 | 1000 | 48 x 60 | 3/8 | 38 | 64 x 64 | 8 | 46 |
| DO-SL 38-20 | 2000 | 48 x 60 | 3/8 | 38 | 64 x 64 | 8 | 46 |
| DO-SL 38-40 | 4000 | 48 x 60 | 1/2 | 38 | 64 x 64 | 9 | 47 |
